Disassembly [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the oil pump relief valve plug.
      GTY298868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump relief valve spring and oil pump relief valve.
  2. REMOVE OIL PUMP COVER

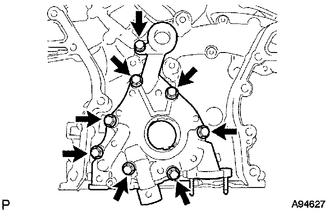

    1. Remove the 8 bolts and oil pump cover.
      GTY443522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL PUMP ROTOR SET
    1. Remove the oil pump rotor set from the timing chain or belt cover sub-assembly.
      GTY408760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
