Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

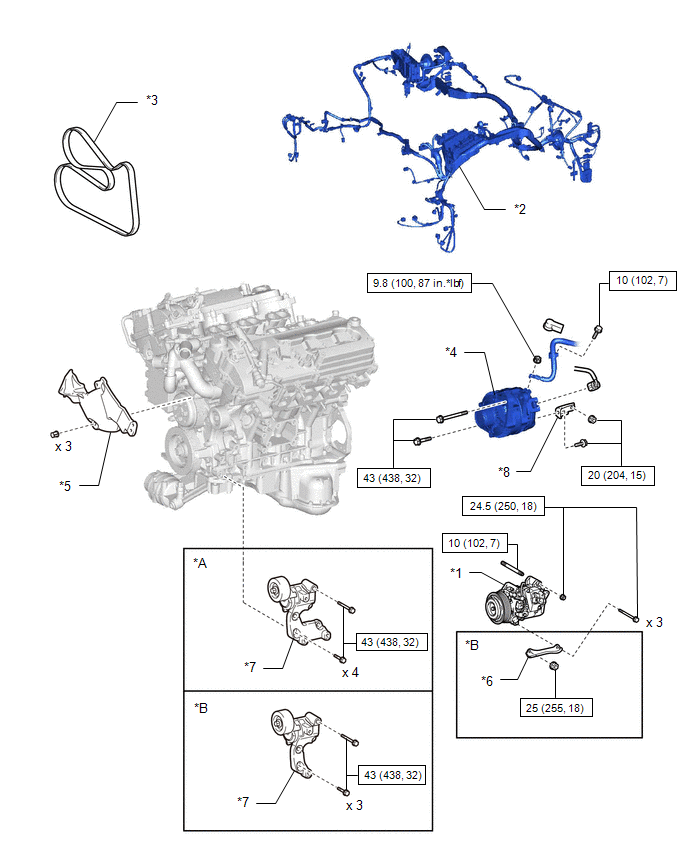

| *A |
for 2WD |
*B |
for AWD |
| *1 |
COMPRESSOR AND MAGNETIC CLUTCH |
*2 |
ENGINE WIRE |
| *3 |
V-RIBBED BELT |
*4 |
GENERATOR ASSEMBLY |
| *5 |
NO. 2 ENGINE COVER |
*6 |
OIL FILTER BRACKET |
| *7 |
V-RIBBED BELT TENSIONER ASSEMBLY |
*8 |
BRACKET |
 |
N.m (kgf/cm, ft*lbf) : Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

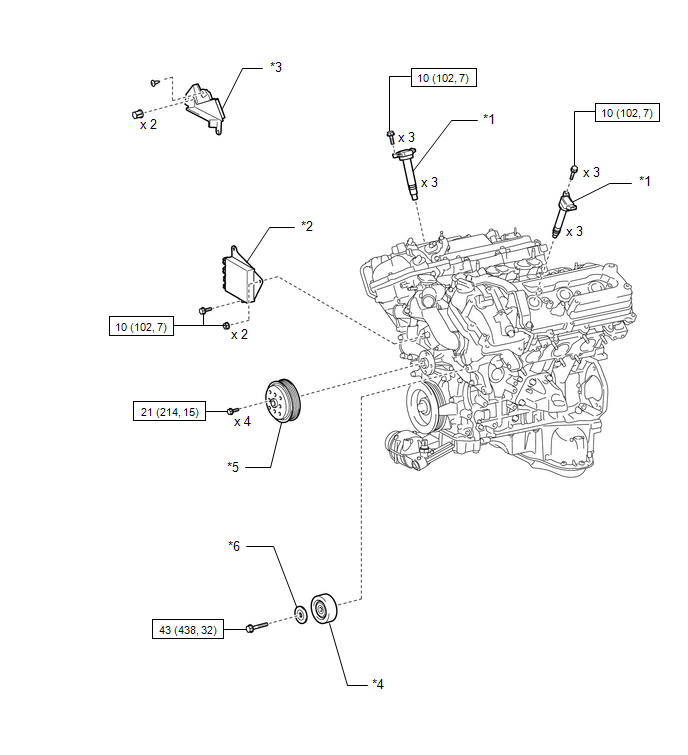

| *1 |
IGNITION COIL ASSEMBLY |
*2 |
INJECTOR DRIVER |
| *3 |
NO. 1 ENGINE COVER |
*4 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *5 |
WATER PUMP PULLEY |
*6 |
NO. 2 IDLER PULLEY COVER PLATE |
|
N.m (kgf/cm, ft*lbf) : Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for 2WD |
*B |
for AWD |

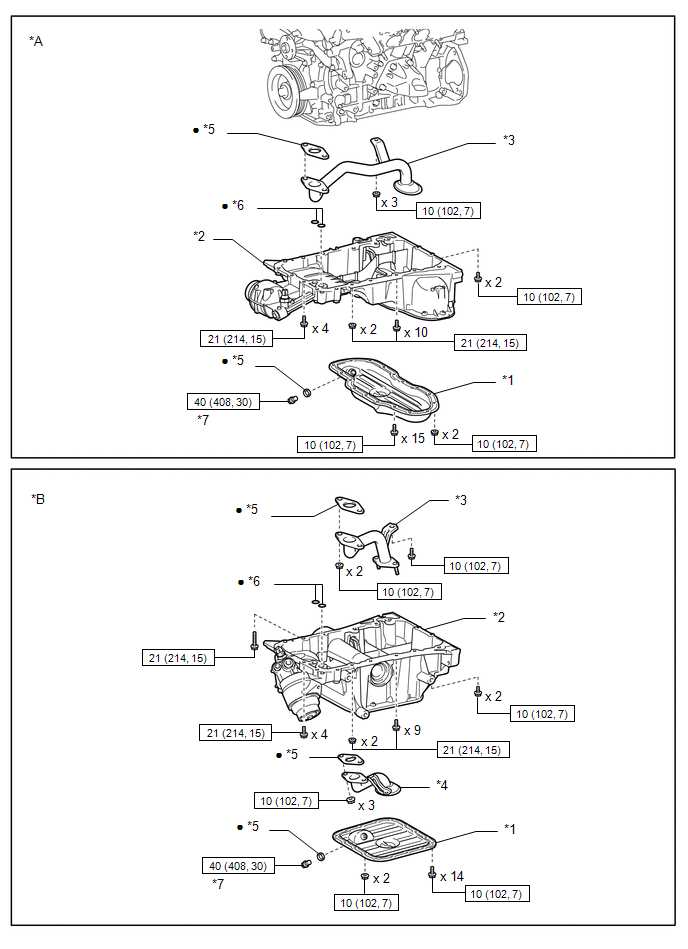

| *1 |
NO. 2 OIL PAN SUB-ASSEMBLY |
*2 |
OIL PAN SUB-ASSEMBLY |
| *3 |
OIL STRAINER SUB-ASSEMBLY |
*4 |
OIL STRAINER WITH PIPE SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
O-RING |
| *7 |
OIL PAN DRAIN PLUG |
- |
- |
|
N.m (kgf/cm, ft*lbf) : Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

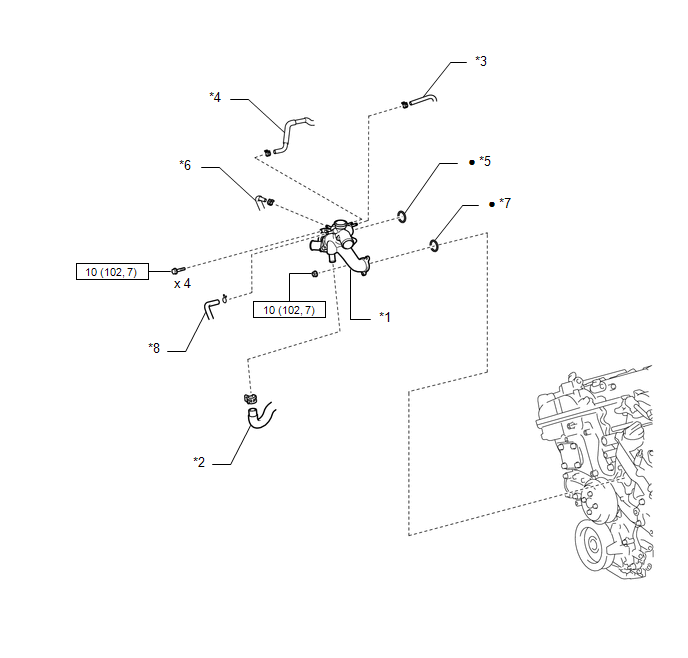

| *1 |
WATER INLET ASSEMBLY |
*2 |
NO. 3 WATER BY-PASS HOSE |
| *3 |
NO. 4 WATER BY-PASS HOSE |
*4 |
NO. 2 WATER BY-PASS HOSE |
| *5 |
WATER OUTLET PIPE O-RING |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
NO. 1 WATER INLET HOUSING GASKET |
*8 |
RADIATOR RESERVE TANK HOSE |
|
N.m (kgf/cm, ft*lbf) : Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

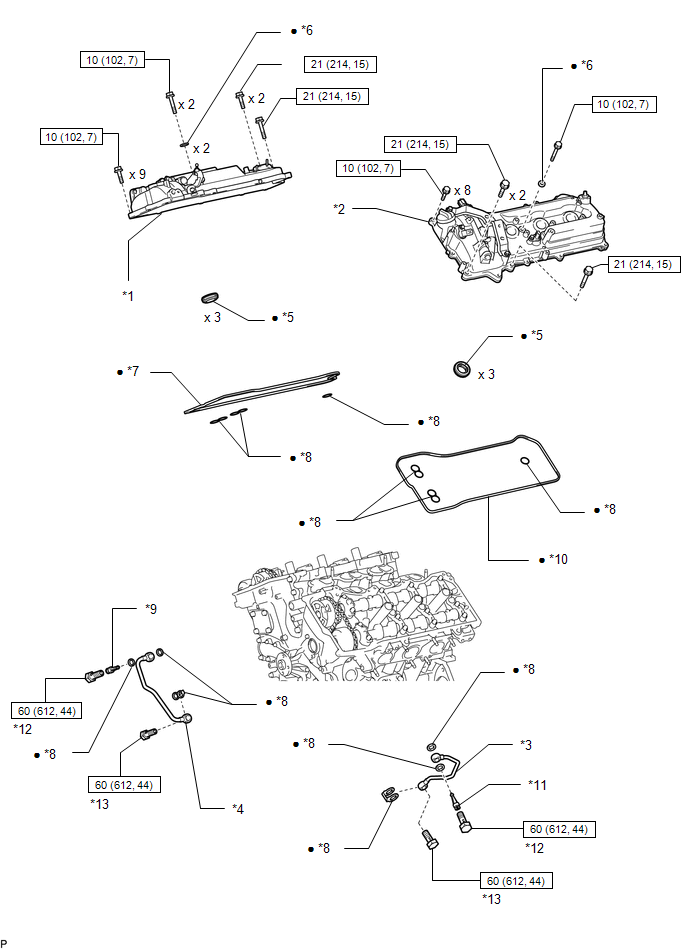

| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *3 |
NO. 1 OIL PIPE |
*4 |
NO. 2 OIL PIPE |
| *5 |
SPARK PLUG TUBE GASKET |
*6 |
SEAL WASHER |
| *7 |
CYLINDER HEAD COVER GASKET |
*8 |
GASKET |
| *9 |
OIL CONTROL VALVE FILTER RH |
*10 |
CYLINDER HEAD COVER GASKET LH |
| *11 |
OIL CONTROL VALVE FILTER LH |
*12 |
OIL PIPE UNION |
| *13 |
OIL CHECK VALVE BOLT |
- |
- |
|
N.m (kgf/cm, ft*lbf) : Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

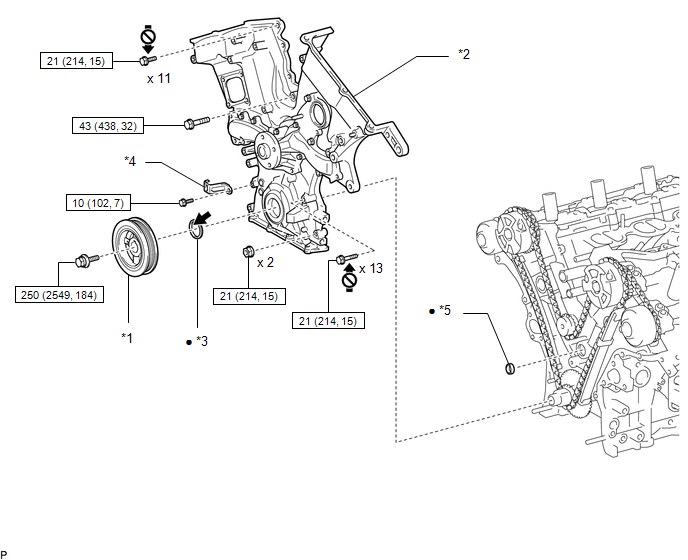

| *1 |
CRANKSHAFT PULLEY |
*2 |
TIMING CHAIN OR BELT COVER SUB-ASSEMBLY |
| *3 |
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
*4 |
WIRE HARNESS CLAMP BRACKET |
| *5 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft*lbf) : Specified torque |
• |
Non-reusable part |
 |
MP Grease |
 |
Do not apply lubricants to the threaded |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

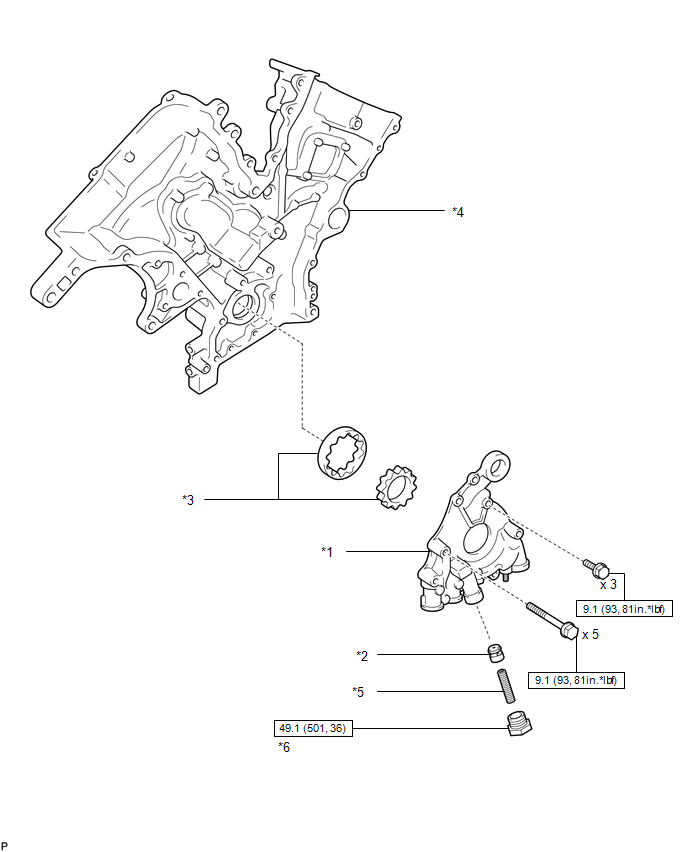

| *1 |
OIL PUMP COVER |
*2 |
OIL PUMP RELIEF VALVE |
| *3 |
OIL PUMP ROTOR SET |
*4 |
TIMING CHAIN OR BELT COVER SUB-ASSEMBLY |
| *5 |
OIL PUMP RELIEF VALVE SPRING |
*6 |
OIL PUMP RELIEF VALVE PLUG |
|
N.m (kgf/cm, ft*lbf) : Specified torque |
- |
- |
