Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

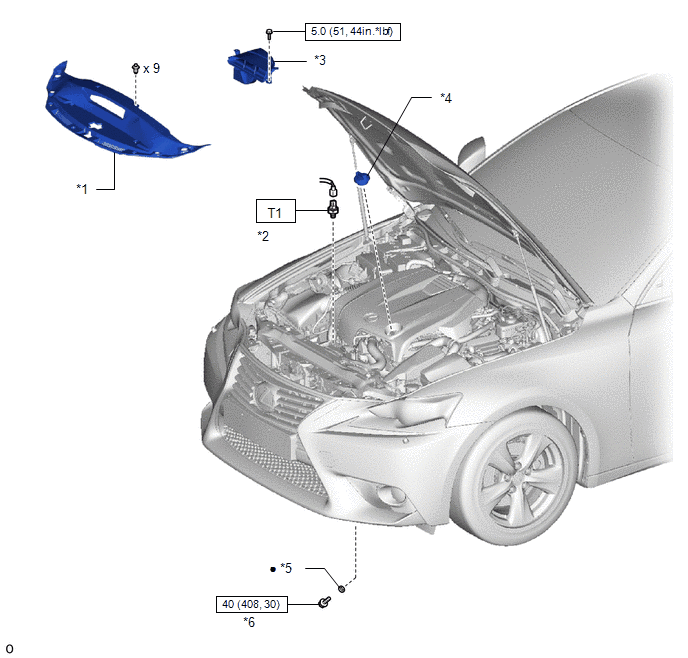

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
| *3 | NO. 1 AIR CLEANER INLET | *4 | OIL FILLER CAP |
| *5 | GASKET | *6 | DRAIN PLUG |
| N.m (kgf/cm, ft*lbf) : Specified torque | • | Non-reusable part | |
| * | Non-reusable part | - | - |
| T1 | Type A: 14.7 (150, 11) Type B: 15 (153, 11) |
- | - |
