Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

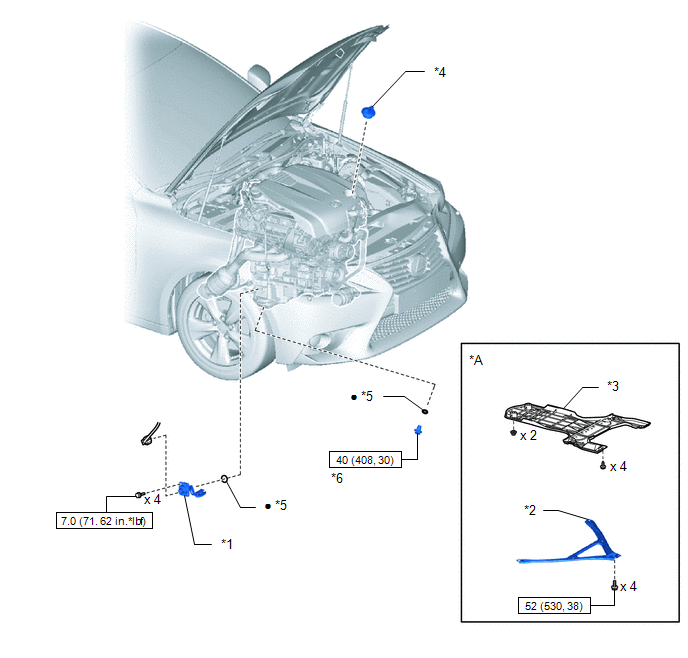

| *A |
w/ NO. 2 ENGINE UNDER COVER |
- |
- |
| *1 |
ENGINE OIL LEVEL SENSOR |
*2 |
FRONT SUSPENSION MEMBER BRACE |
| *3 |
NO. 2 ENGINE UNDER COVER |
*4 |
OIL FILLER CAP |
| *5 |
GASKET |
*6 |
OIL PAN DRAIN PLUG |
 |
N.m (kgf/cm, ft*lbf) : Specified torque |
• |
Non-reusable part |
