Parts Location [04/2013 - 10/2016]: Illustration

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Lexus IS 350, 2016 Lexus IS 300, 2016 Lexus IS 200t, 2015 Lexus IS 350, and 2015 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

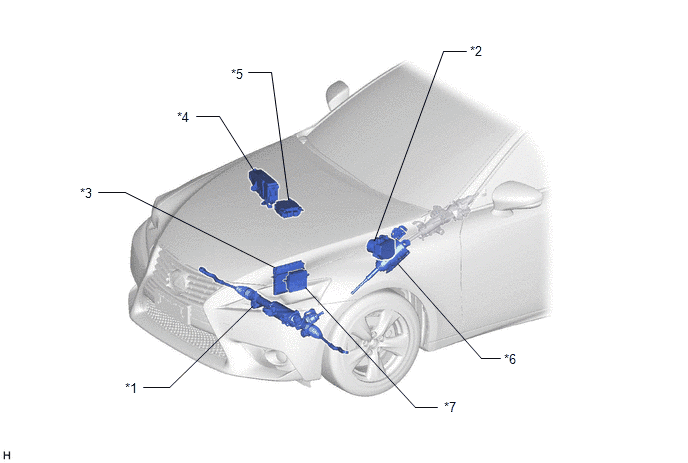

Fig 1: Variable Gear Ratio Steering System Components Location (1 Of 2) [04/2013 - 10/2016]
GTY466272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 POWER STEERING LINK ASSEMBLY *2 SKID CONTROL ECU
(BRAKE ACTUATOR ASSEMBLY)
*3 ECM *4 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- VGRS FUSE
*5 POWER STEERING ECU ASSEMBLY *6 STEERING ACTUATOR ASSEMBLY
- MOTOR ROTATION ANGLE SENSOR
- LOCK SOLENOID
- MOTOR
*7 TCM - -

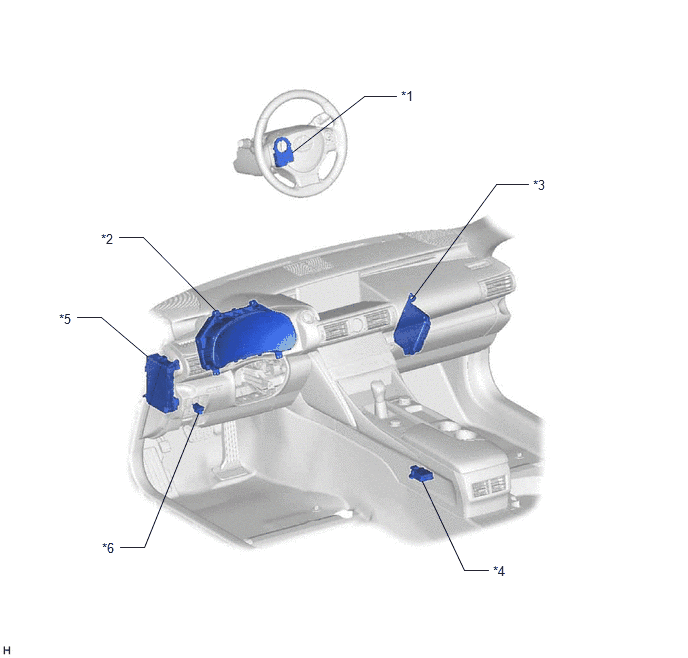

Fig 1: Variable Gear Ratio Steering System Components Location (2 Of 2) [04/2013 - 10/2016]
GTY456538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING SENSOR *2 COMBINATION METER ASSEMBLY
- MULTI-INFORMATION DISPLAY
- MASTER WARNING LIGHT
*3 VGRS ECU (FRONT STEERING CONTROL ECU) *4 YAW RATE SENSOR
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 1 FUSE
- J/B-B FUSE
- IG1 NO. 2 FUSE		 *6 DLC3
