Installation [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL TANK PROTECTOR SUB-ASSEMBLY
    1. Install the No. 2 fuel tank protector and No. 3 fuel tank protector to the fuel tank assembly.
    2. Install the No. 1 fuel tank protector sub-assembly to the fuel tank assembly.

      HINT:

      Install the No. 1 fuel tank protector after installing the No. 2 fuel tank protector and No. 3 fuel tank protector.

  2. INSTALL FUEL TANK CUSHION
    1. Install 5 new No. 6 fuel tank cushions to the fuel tank assembly.
    2. Install the fuel tank bracket, 2 fuel tank cushions and fuel tank cushion set to the fuel tank assembly.
  3. INSTALL FUEL TUBE
    1. Install the No. 5 fuel tube clamp to the fuel tank assembly.
    2. Install the fuel tank return tube and fuel tank main tube sub-assembly to the fuel tank assembly with the clamp.
  4. INSTALL FUEL TANK ASSEMBLY
    1. Set the fuel tank assembly on an engine lifter with attachments.
    2. Using the engine lifter, slowly raise the fuel tank assembly, and then install the fuel tank assembly with the 2 nuts, 4 bolts and 2 No. 1 fuel tank bands.

      Nut

      Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)

      Bolt

      Torque: 45 N.m (459 kgf/cm, 33 ft.lbf)

      NOTE:
      • Do not drop the fuel tank assembly.
      • When installing the fuel tank assembly, tilt it slightly to prevent it from interfering with the suspension arm or other surrounding parts.
  5. INSTALL REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  6. INSTALL REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 18

  7. INSTALL PARKING BRAKE CABLE ASSEMBLY
    1. Install the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly with the 2 bolts, 2 nuts and 4 clamps.

      Bolt

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

      Nut

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  8. CONNECT FUEL TANK BREATHER TUBE

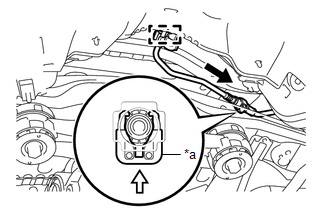

    1. Push the fuel tank breather tube onto the fuel tank filler pipe hose and push in the retainer to engage the lock claws.
      GTY459863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push
      Push In
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the fuel tank breather tube connector and fuel tank filler pipe hose before performing this work.
      • After connecting the fuel tank breather tube, check that the fuel tank breather tube is securely connected by pulling on the fuel tank breather tube.
    2. Connect the fuel tank breather tube to the clamp.
  9. CONNECT FUEL CUT OFF VALVE TUBE

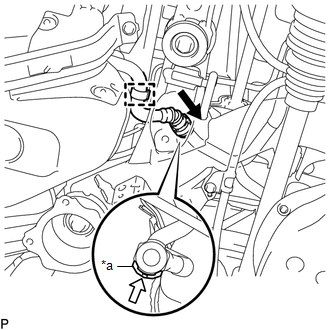

    1. Push the fuel cut off valve tube onto the fuel tank vent hose and push in the retainer to engage the lock claws.
      GTY463331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push
      Push In
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the fuel cut off valve tube connector and fuel tank vent hose before performing this work.
      • After connecting the fuel cut off valve tube, check that the fuel tank breather tube is securely connected by pulling on the fuel cut off valve tube.
    2. Connect the fuel cut off valve tube to the No. 1 evaporation vent tube clamp.
  10. CONNECT FUEL TANK TO FILLER PIPE HOSE
    1. Connect the fuel tank to filler pipe hose to the fuel tank assembly and tighten the clamp to secure it.
      GTY459680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper

      HINT:

      Make sure the clamp bolt is within the area shown in the illustration.

  11. INSTALL FUEL TUBE

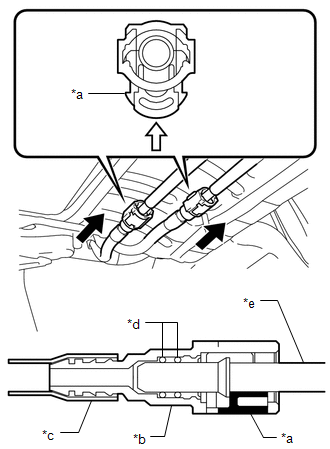

    1. Connect the fuel tank return tube and fuel tank main tube sub-assembly.
      NOTE:

      Check if there is any damage or foreign matter on the connecting parts of the fuel lines.

      GTY465855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Fuel Tube Connector
      *c Nylon Tube
      *d O-ring
      *e Fuel Pipe
      Push
      Push In
      1. Align the fuel tube connector with the fuel pipe, and push them together until the fuel tube connector makes a "click" sound. If it is difficult to push the fuel pipe into the fuel tube connector, apply a small amount of clean engine oil to the tip of the fuel pipe and reinsert it.
      2. Connect the fuel lines and push in the retainer to engage the 2 claws. Check that the fuel pipe and fuel tube connector are securely connected by pulling on them.
    2. for Half Cover Type:
      1. Install the 2 protectors to the fuel tank return tube and fuel tank main tube sub-assembly.
  12. INSTALL REAR FLOOR SIDE MEMBER COVER LH (for Half Cover Type)

    Refer to PROCEDURE - Step 79

  13. INSTALL REAR FLOOR SIDE MEMBER COVER RH (for Half Cover Type)

    Refer to PROCEDURE - Step 80

  14. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Refer to INSTALLATION [04/2013 - 08/2015]

  15. ADD FUEL
  16. INSTALL FUEL TANK VENT TUBE ASSEMBLY

    Refer to INSTALLATION [04/2013 - 08/2015]

  17. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to INSTALLATION [04/2013 - 08/2015]
