Components [04/2013 - 08/2015]

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

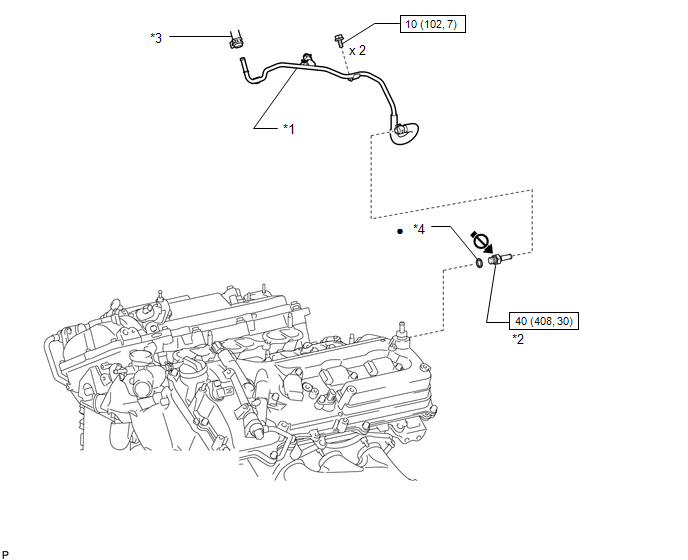

Fig 1: Fuel Relief Valve Replacement Components With Torque Specifications [04/2013 - 08/2015]

*1	NO. 1 FUEL PIPE SUB-ASSEMBLY	*2	FUEL RELIEF VALVE ASSEMBLY
*3	NO. 3 FUEL HOSE	*4	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants (to the threaded parts)	-	-
