Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

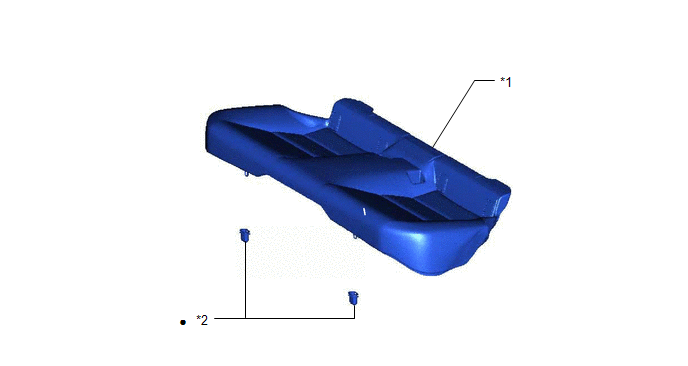

| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| • | Non-reusable part | - | - |

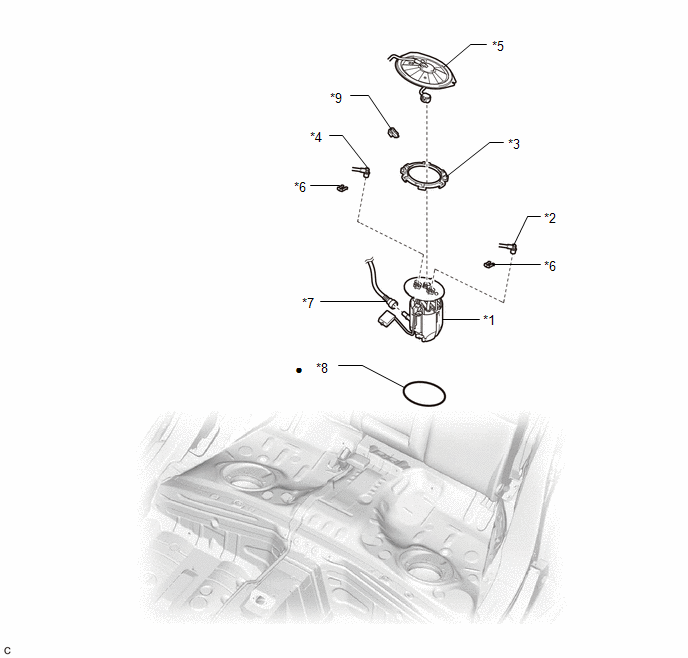

| *1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | FUEL PUMP GAUGE RETAINER | *4 | FUEL TANK RETURN TUBE |
| *5 | REAR FLOOR SERVICE HOLE COVER | *6 | TUBE JOINT CLIP |
| *7 | FUEL RETURN VENT TUBE SUB-ASSEMBLY | *8 | FUEL SUCTION TUBE SET GASKET |
| *9 | NO. 1 FUEL TUBE CLAMP | - | - |
| • | Non-reusable part | - | - |

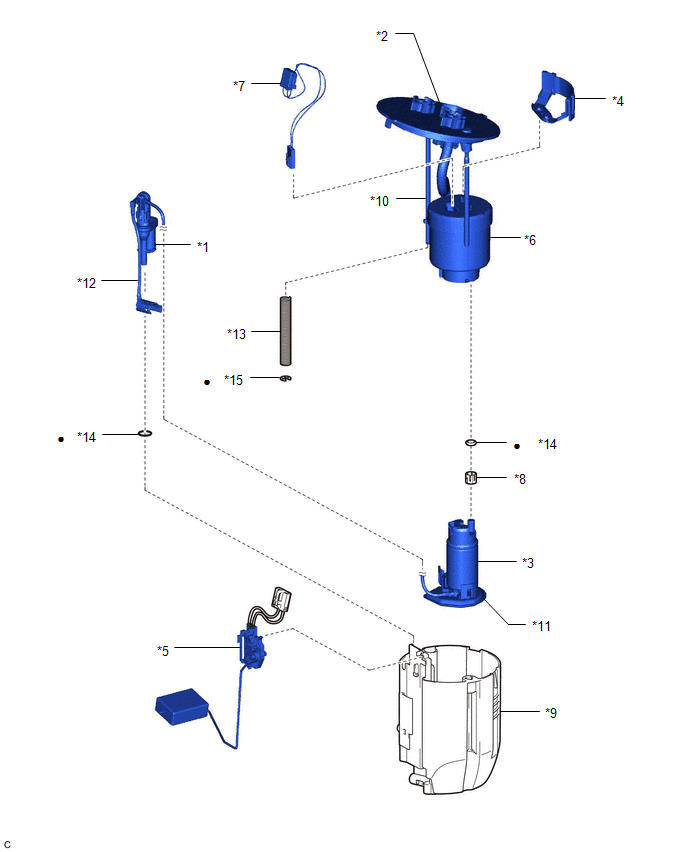

| *1 | JET PUMP | *2 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *3 | FUEL PUMP | *4 | NO. 1 FUEL SUCTION SUPPORT |
| *5 | FUEL SENDER GAUGE ASSEMBLY | *6 | FUEL FILTER |
| *7 | FUEL PUMP HARNESS | *8 | FUEL PUMP SPACER |
| *9 | NO. 1 FUEL SUB-TANK | *10 | FUEL SUCTION PLATE SHAFT |
| *11 | SUCTION FILTER | *12 | FUEL TUBE |
| *13 | SPRING | *14 | O-RING |
| *15 | E-RING | - | - |
| • | Non-reusable part | - | - |
