Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 4

  2. REMOVE SPARE WHEEL COVER TRAY LH

    Refer to PROCEDURE - Step 5

  3. REMOVE SPARE WHEEL COVER TRAY RH

    Refer to PROCEDURE - Step 6

  4. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 7

  5. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 8

  6. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 9

  7. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fixed Seat Type)

    Refer to PROCEDURE - Step 10

  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 11

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 18

  11. REMOVE FUEL PUMP CONTROL ECU
    1. Disengage the 2 claws and open the cover.
      GTY465291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and rope hook assembly.
      GTY456525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 5 clips and turn back the luggage compartment trim cover LH.
      GTY460530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

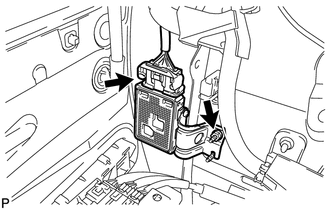

    4. Disconnect the fuel pump control ECU connector.
      GTY419598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the nut and fuel pump control ECU from the body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

  12. REMOVE FUEL PUMP CONTROL ECU BRACKET
    1. Remove the 2 screws and fuel pump control ECU bracket
      GTY416147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
