Section 87 (Fuel System (4GR-FSE) - Service Information)
>>
Fuel Pressure Sensor
>>
Components [04/2013 - 08/2015]
Components [04/2013 - 08/2015]
WARNING:
This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

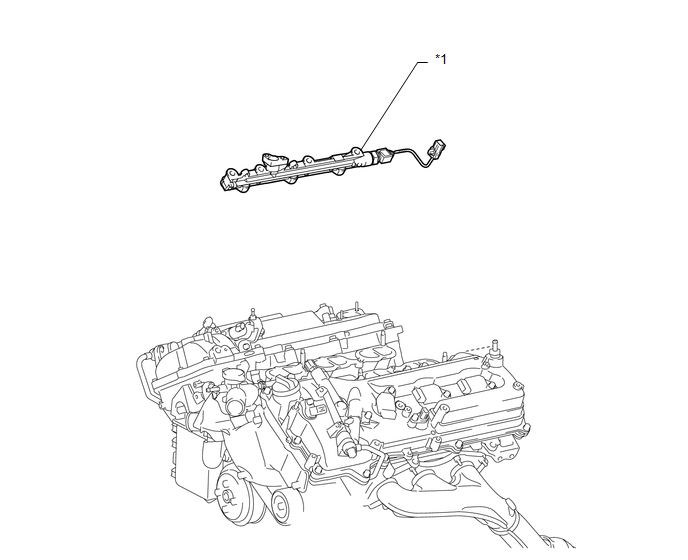

Fig 1: Fuel Pressure Sensor Replacement Components [04/2013 - 08/2015]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR)
-
