Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

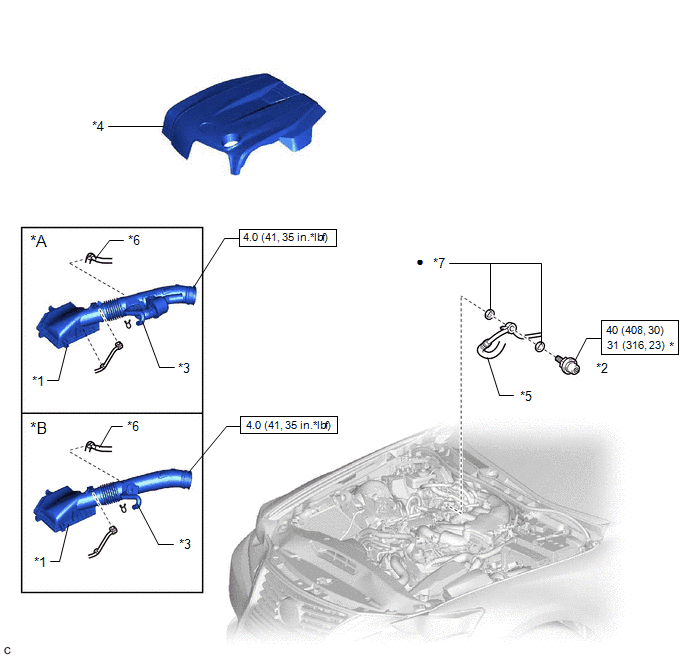

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications [04/2013 - 08/2015]
| *A | w/ INTAKE AIR SOUND CREATOR | *B | w/o INTAKE AIR SOUND CREATOR |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | FUEL PRESSURE PULSATION DAMPER ASSEMBLY |
| *3 | NO. 2 VENTILATION HOSE | *4 | V-BANK COVER SUB-ASSEMBLY |
| *5 | FUEL TUBE SUB-ASSEMBLY | *6 | NO. 2 FUEL VAPOR FEED HOSE |
| *7 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
