Removal [04/2013 - 08/2015]: Procedure
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [04/2013 - 08/2015]
- PRECAUTION NOTE:
After turning the engine switch off, waiting time maybe required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.
Refer to PRECAUTION [04/2013 - 08/2015]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE COLD START FUEL INJECTOR ASSEMBLY
- Disconnect the cold start fuel injector assembly connector.

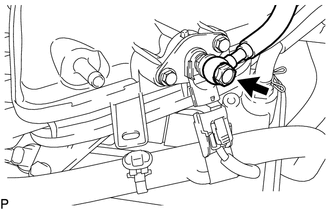

- Remove the bolt and 2 gaskets, and disconnect the fuel tube sub-assembly from the cold start fuel injector assembly.NOTE:
Do not fold or bend the hose.

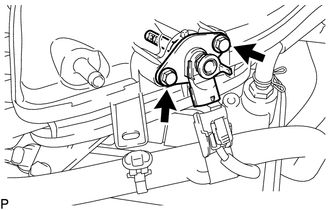

- Remove the 2 bolts, gasket and cold start fuel injector assembly from the intake air surge tank assembly.
