Components [04/2013 - 08/2015]
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

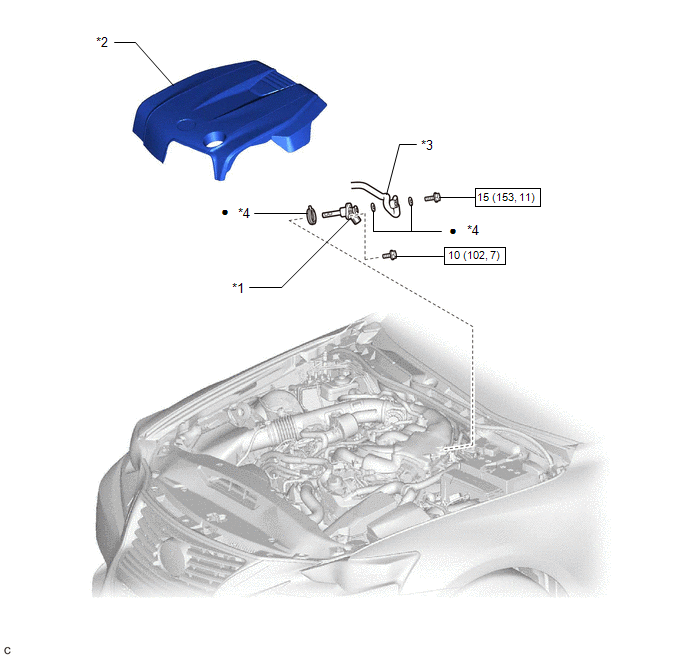

| *1 |
COLD START FUEL INJECTOR ASSEMBLY |
*2 |
V-BANK COVER SUB-ASSEMBLY |
| *3 |
FUEL TUBE SUB-ASSEMBLY |
*4 |
GASKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
