Components [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

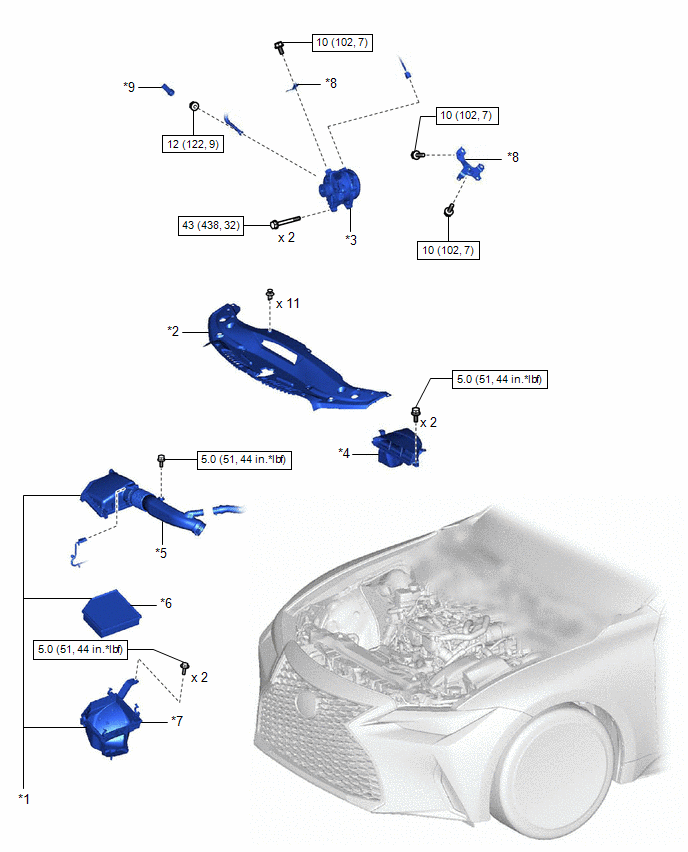

| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
GENERATOR ASSEMBLY |
*4 |
INLET NO. 1 AIR CLEANER |
| *5 |
AIR CLEANER CAP WITH NO. 2 AIR CLEANER HOSE |
*6 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *7 |
AIR CLEANER CASE SUB-ASSEMBLY |
*8 |
WIRE HARNESS CLAMP BRACKET |
| *9 |
TERMINAL CAP |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

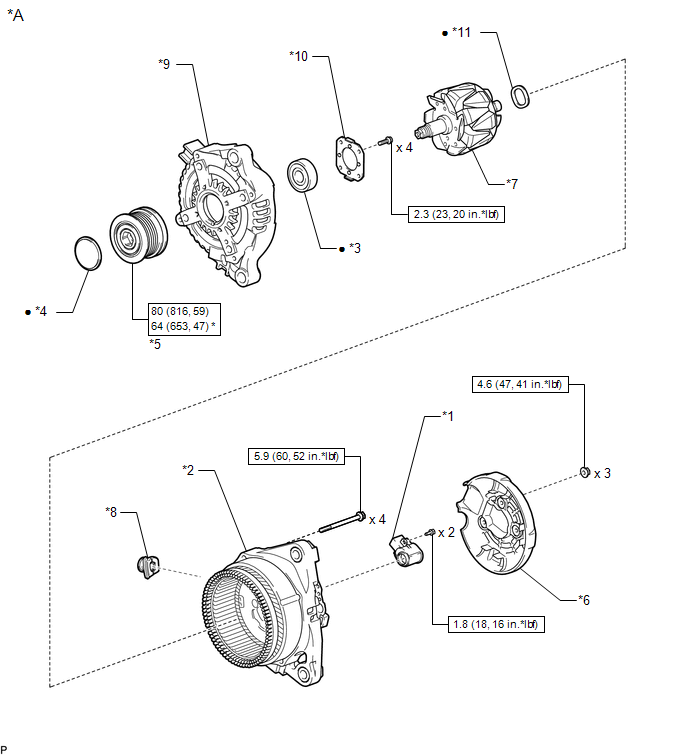

| *A |
for 180 A Type |
- |
- |
| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR DRIVE END FRAME BEARING |
*4 |
GENERATOR PULLEY CAP |
| *5 |
GENERATOR PULLEY WITH CLUTCH |
*6 |
GENERATOR REAR END COVER |
| *7 |
GENERATOR ROTOR ASSEMBLY |
*8 |
GENERATOR TERMINAL INSULATOR |
| *9 |
GENERATOR DRIVE END FRAME |
*10 |
RETAINER PLATE |
| *11 |
WASHER |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

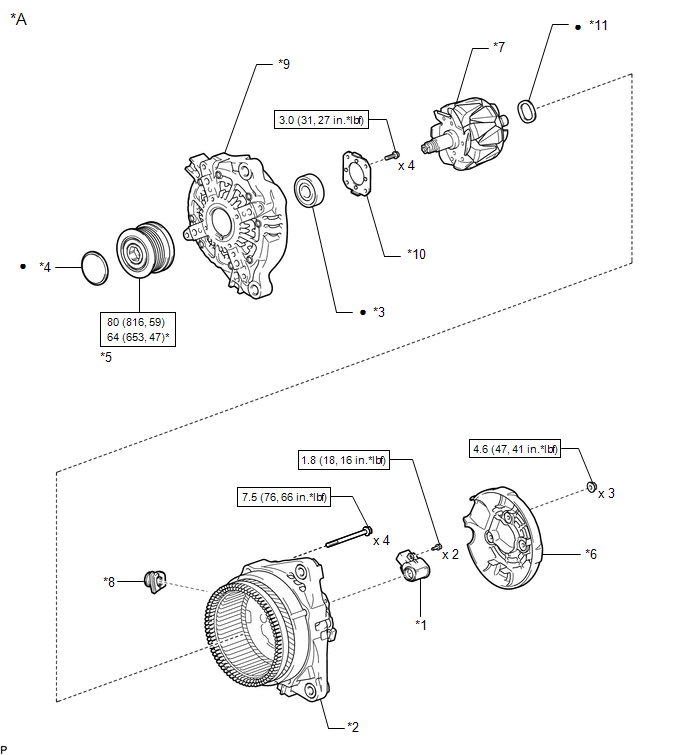

| *A |
for 150 A Type |
- |
- |
| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR DRIVE END FRAME BEARING |
*4 |
GENERATOR PULLEY CAP |
| *5 |
GENERATOR PULLEY WITH CLUTCH |
*6 |
GENERATOR REAR END COVER |
| *7 |
GENERATOR ROTOR ASSEMBLY |
*8 |
GENERATOR TERMINAL INSULATOR |
| *9 |
GENERATOR DRIVE END FRAME |
*10 |
RETAINER PLATE |
| *11 |
WASHER |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
