Parts Location [08/2015 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

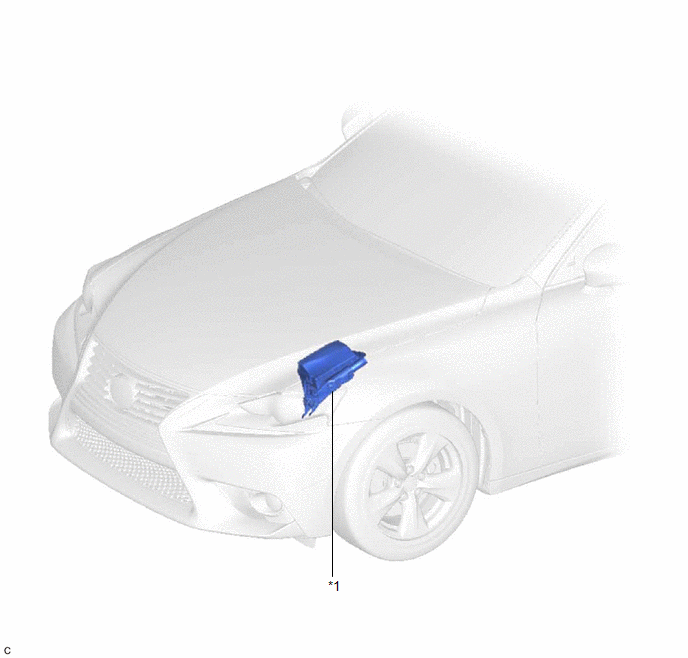

GTY664850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- EFI NO. 2 FUSE
- EFI-MAIN FUSE
- EFIMAIN RELAY		 - -


GTY616687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OIL COOLER ASSEMBLY *2 ENGINE OIL TEMPERATURE SENSOR
*3 ENGINE OIL LEVEL SENSOR *4 OIL PRESSURE SWITCHING VALVE ASSEMBLY
*5 CRANKSHAFT POSITION SENSOR *6 ENGINE COOLANT TEMPERATURE SENSOR
*7 OIL PRESSURE SENDER GAUGE ASSEMBLY - -
