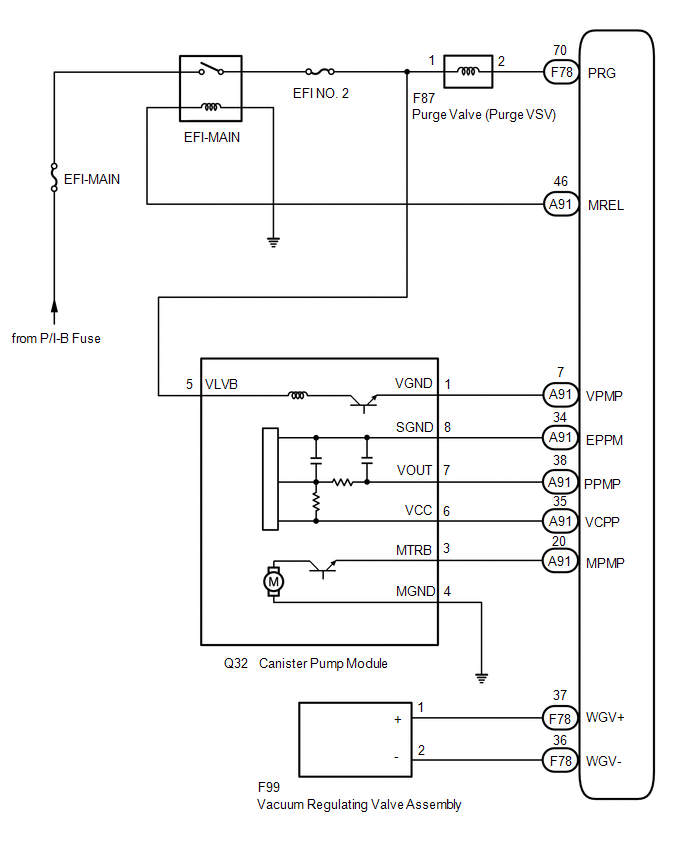

System Diagram [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

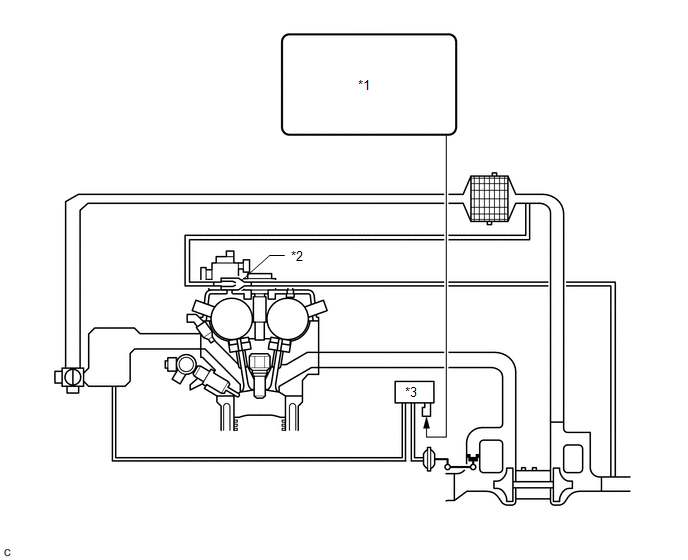

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ECM |
*2 |
Ejector |
| *3 |
Vacuum Regulating Valve Assembly |
- |
- |

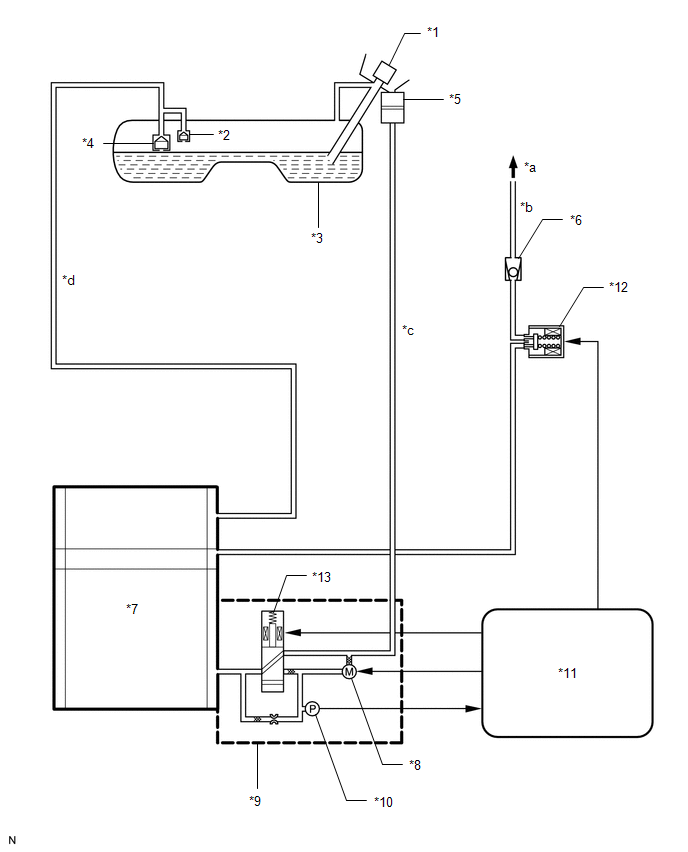

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Fuel Tank Cap Assembly |
*2 |
Fuel Cut-off Valve |
| *3 |
Fuel Tank Assembly |
*4 |
Fuel Fill Check Valve |
| *5 |
Canister Filter |
*6 |
No. 1 Check Valve |
| *7 |
Canister (Charcoal Canister Assembly) |
*8 |
Pump Motor (Leak Detection Pump Sub-assembly) |
| *9 |
Canister Pump Module |
*10 |
Canister Pressure Sensor (Leak Detection Pump Sub-assembly) |
| *11 |
ECM |
*12 |
Purge Valve (Purge VSV) |
| *13 |
Vent Valve (Leak Detection Pump Sub-assembly) |
- |
- |
| *a |
to Intake Manifold |
*b |
Purge Line |
| *c |
Air Line |
*d |
Vent Line |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
