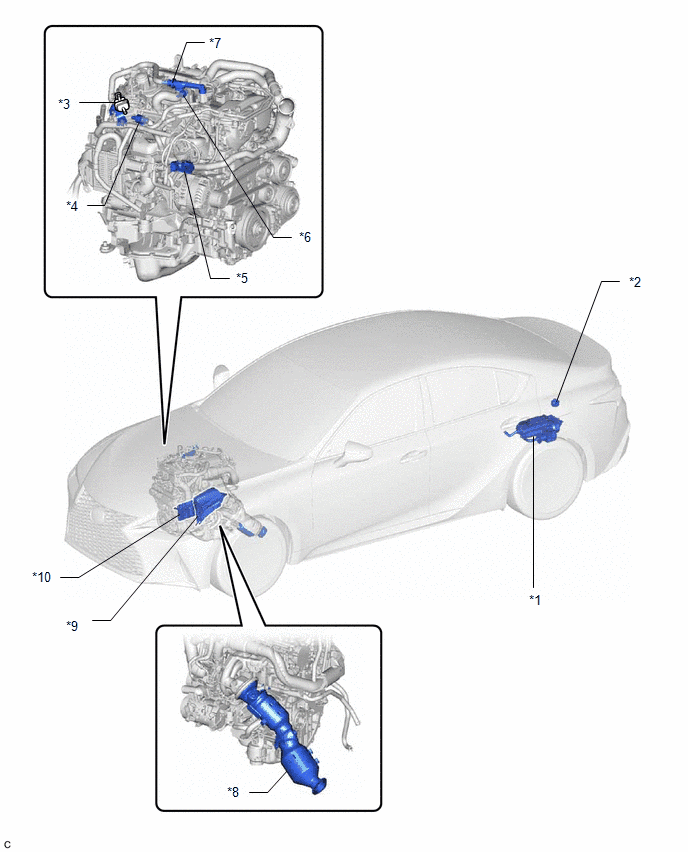

Parts Location [09/2020 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | FUEL TANK CAP ASSEMBLY |
| *3 | PURGE VALVE (PURGE VSV) | *4 | NO. 1 CHECK VALVE |
| *5 | VACUUM REGULATING VALVE ASSEMBLY | *6 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *7 | EJECTOR | *8 | EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front and Rear Catalyst) |
| *9 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - EFI NO. 2 FUSE - EFI-MAIN FUSE |
*10 | ECM |
