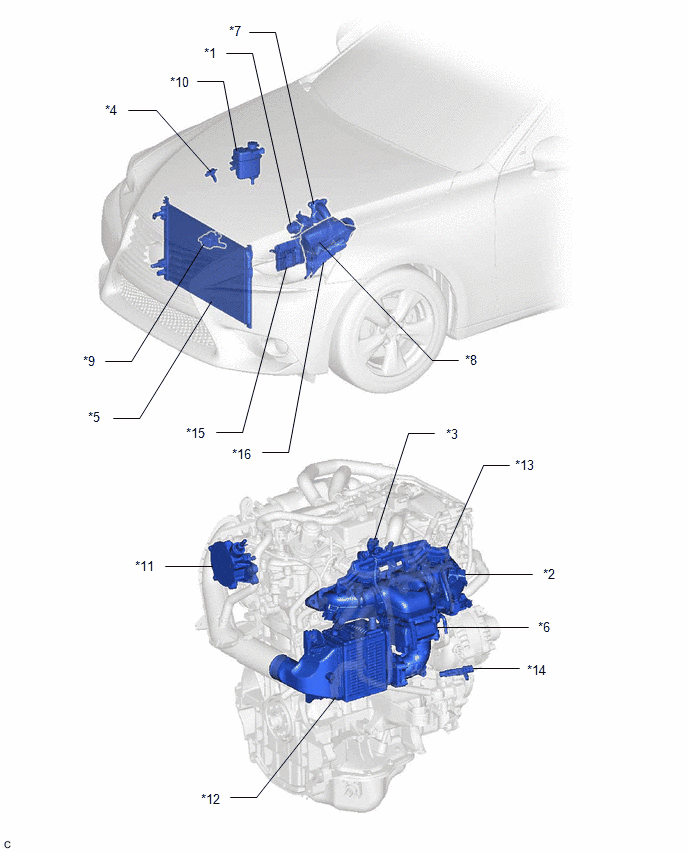

Parts Location [08/2015 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | INTAKE AIR CONTROL VALVE (AIR BY-PASS VALVE ASSEMBLY) | *2 | NO. 1 TURBO PRESSURE SENSOR |
| *3 | NO. 2 TURBO PRESSURE SENSOR | *4 | INTAKE MASS AIR FLOW METER SUB-ASSEMBLY |
| *5 | INTERCOOLER COOLING RADIATOR ASSEMBLY (for Intercooler) | *6 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *7 | TURBOCHARGER SUB-ASSEMBLY | *8 | WASTE GATE VALVE ACTUATOR WITH BRACKET ASSEMBLY |
| *9 | ELECTRIC WATER PUMP ASSEMBLY (for Intercooler) | *10 | INTERCOOLER RESERVE TANK ASSEMBLY |
| *11 | VACUUM PUMP ASSEMBLY | *12 | INTERCOOLER ASSEMBLY |
| *13 | INTAKE MANIFOLD | *14 | CRANKSHAFT POSITION SENSOR |
| *15 | ECM | *16 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - A/F RELAY - INJ RELAY - EFI-MAIN FUSE - EFI NO. 2 FUSE - A/F FUSE - INJ FUSE |
