Parts Location [08/2015 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

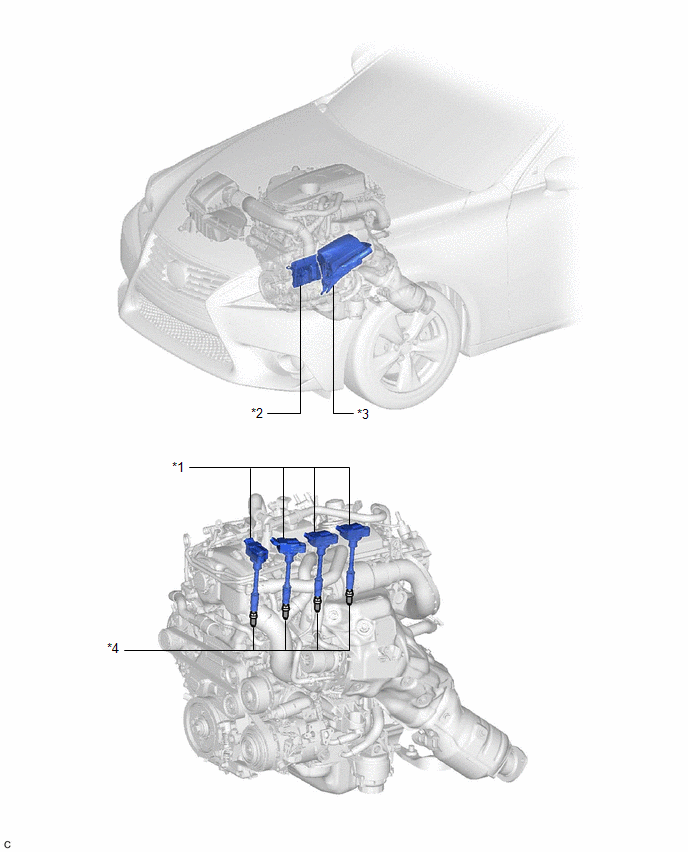

GTY633375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 IGNITION COIL ASSEMBLY *2 ECM
*3 NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- IG2 FUSE		 *4 SPARK PLUG
