Parts Location [10/2017 - 09/2020]: Illustration

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

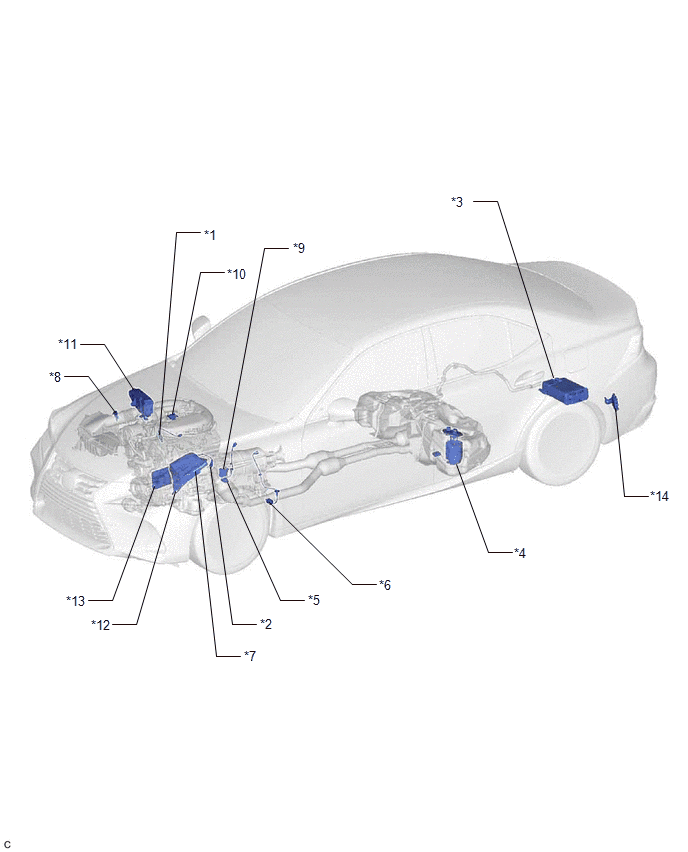

Fig 1: SFI System Replacement Components (1 Of 4) [10/2017 - 09/2020]
GTY779476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR FUEL RATIO SENSOR (Bank 1 Sensor 1) *2 AIR FUEL RATIO SENSOR (Bank 2 Sensor 1)
*3 CANISTER *4 FUEL PUMP (for Low Pressure Side)
*5 HEATED OXYGEN SENSOR (Bank 1 Sensor 2) *6 HEATED OXYGEN SENSOR (Bank 2 Sensor 2)
*7 SEMICONDUCTOR POWER INTEGRATION ECU *8 MASS AIR FLOW METER SUB-ASSEMBLY
*9 PARK/NEUTRAL POSITION SWITCH ASSEMBLY *10 PURGE VSV
*11 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY *12 NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
*13 ECM *14 FUEL PUMP CONTROL ECU

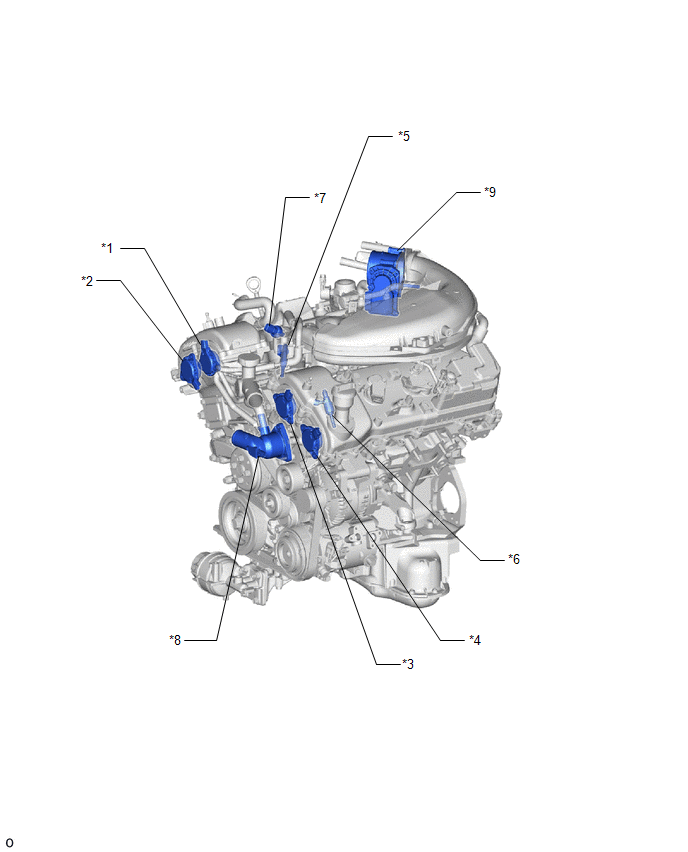

Fig 1: SFI System Replacement Components (2 Of 4) [10/2017 - 09/2020]
GTY780958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 1) *2 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 1)
*3 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 2) *4 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 2)
*5 FUEL INJECTOR ASSEMBLY (for Port Injection) *6 FUEL INJECTOR ASSEMBLY (for Direct Injection)
*7 FUEL PRESSURE SENSOR (for Low Pressure Side) *8 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*9 THROTTLE BODY WITH MOTOR ASSEMBLY - -

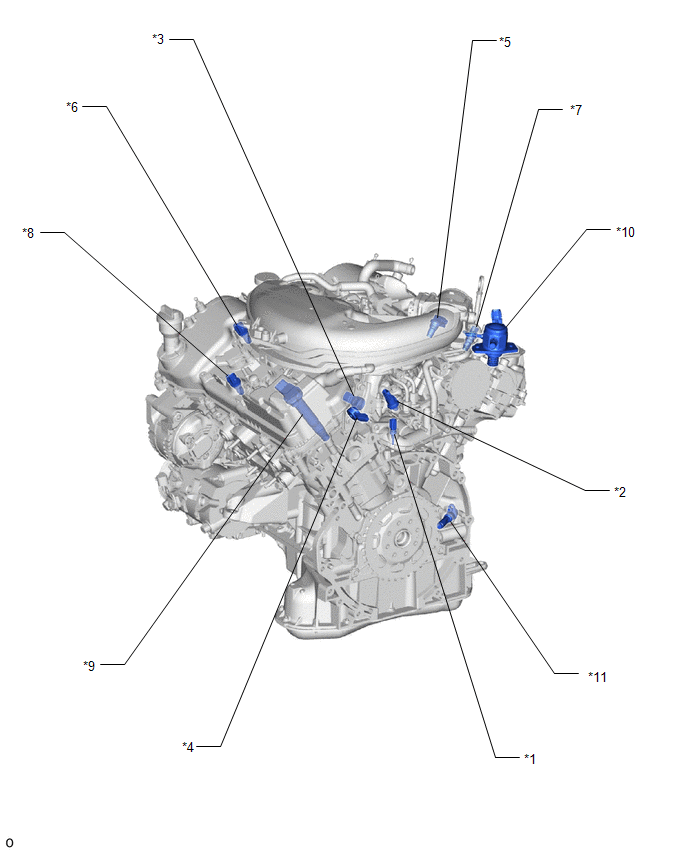

Fig 1: SFI System Replacement Components (3 Of 4) [10/2017 - 09/2020]
GTY798885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 FUEL PRESSURE SENSOR (for High Pressure Side)
*3 KNOCK CONTROL SENSOR (Bank 1) *4 KNOCK CONTROL SENSOR (Bank 2)
*5 VVT SENSOR (for Intake Camshaft of Bank 1) *6 VVT SENSOR (for Intake Camshaft of Bank 2)
*7 VVT SENSOR (for Exhaust Camshaft of Bank 1) *8 VVT SENSOR (for Exhaust Camshaft of Bank 2)
*9 IGNITION COIL ASSEMBLY *10 FUEL PUMP ASSEMBLY (for High Pressure Side)
*11 CRANKSHAFT POSITION SENSOR - -

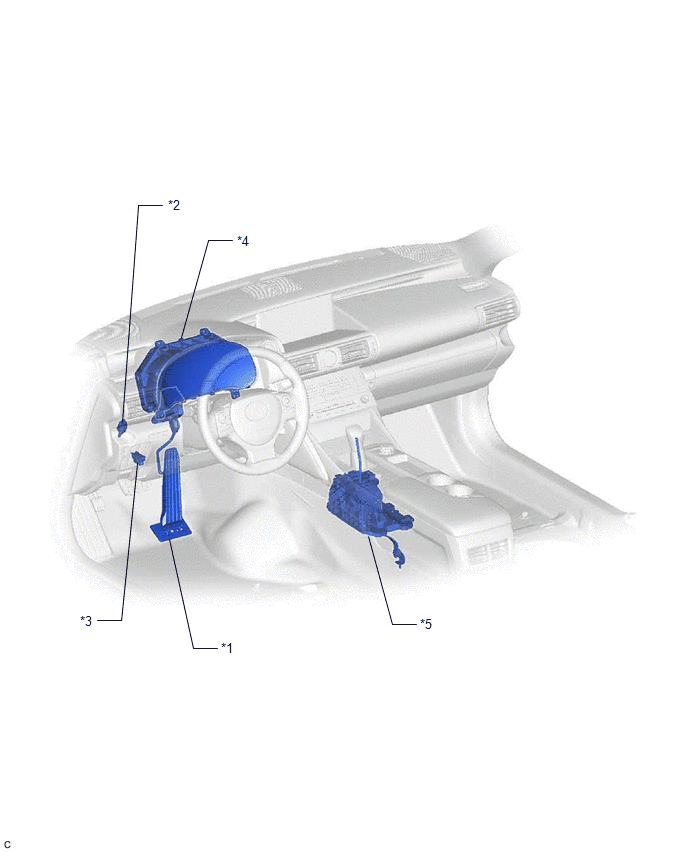

Fig 1: SFI System Replacement Components (4 Of 4) [10/2017 - 09/2020]
GTY796569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ACCELERATOR PEDAL SENSOR ASSEMBLY *2 STOP LIGHT SWITCH ASSEMBLY
*3 DLC3 *4 COMBINATION METER ASSEMBLY
*5 TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY) - -
