Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT SOLENOID VALVE SL2

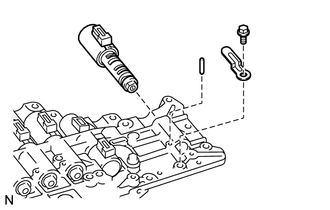

    GTY467230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt, solenoid lock plate and straight pin from the transmission valve body assembly.
    2. Remove the shift solenoid valve SL2 from the transmission valve body assembly.
  2. REMOVE SHIFT SOLENOID VALVE SL
    1. Remove the bolt and shift solenoid valve SL from the transmission valve body assembly.

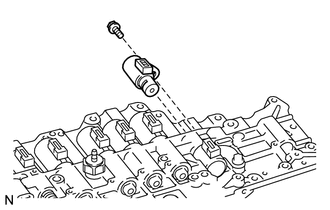

      GTY467226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SOLENOID LOCK PLATE
    1. Remove the 2 bolts and solenoid lock plate from the transmission valve body assembly.

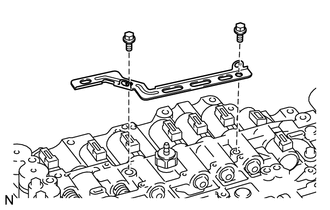

      GTY467064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE SL3
    1. Remove the straight pin and shift solenoid valve SL3 from the transmission valve body assembly.

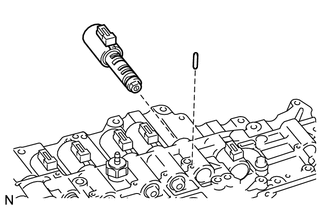

      GTY467063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE SL4
    1. Remove the straight pin and shift solenoid valve SL4 from the transmission valve body assembly.

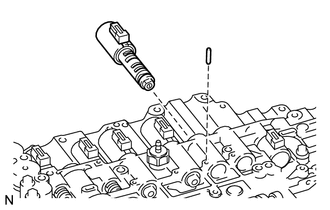

      GTY470955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT SOLENOID VALVE SL5
    1. Remove the straight pin and shift solenoid valve SL5 from the transmission valve body assembly.

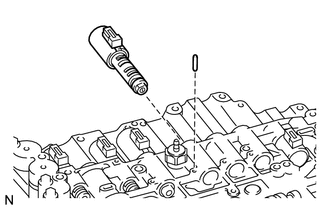

      GTY467266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SHIFT SOLENOID VALVE SL1
    1. Remove the straight pin and shift solenoid valve SL1 from the transmission valve body assembly.

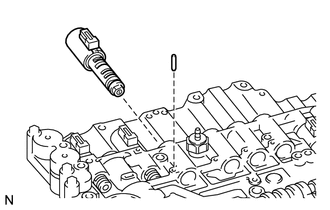

      GTY467229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT SOLENOID VALVE SLU
    1. Remove the straight pin and shift solenoid valve SLU from the transmission valve body assembly.

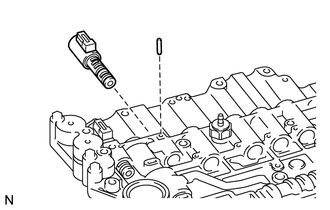

      GTY467228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the straight pin and shift solenoid valve SLT from the transmission valve body assembly.

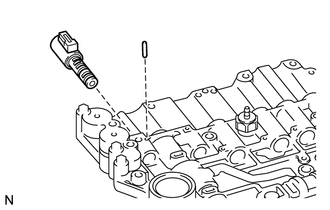

      GTY467231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SHIFT SOLENOID VALVE SR

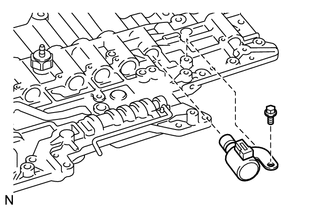

    GTY470946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and shift solenoid valve SR from the transmission valve body assembly.
  11. REMOVE OIL PRESSURE SWITCH
    1. Remove the oil pressure switch from the transmission valve body assembly.

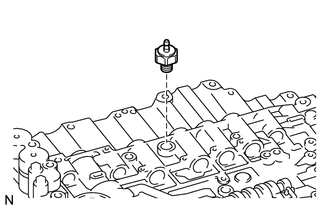

      GTY467227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
