Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

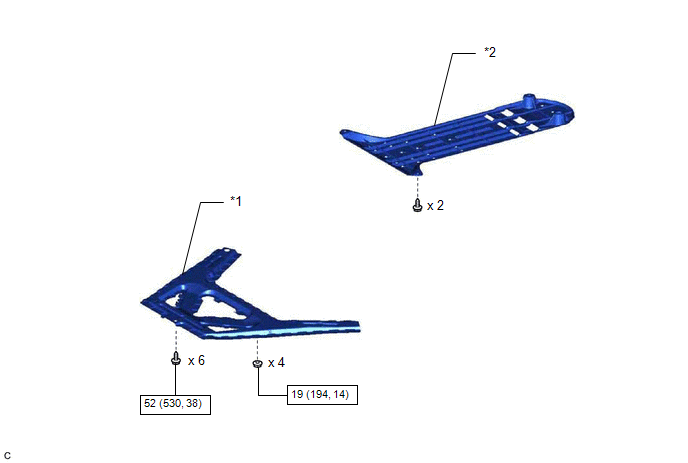

| *1 |
FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY |
*2 |
NO. 2 ENGINE UNDER COVER |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

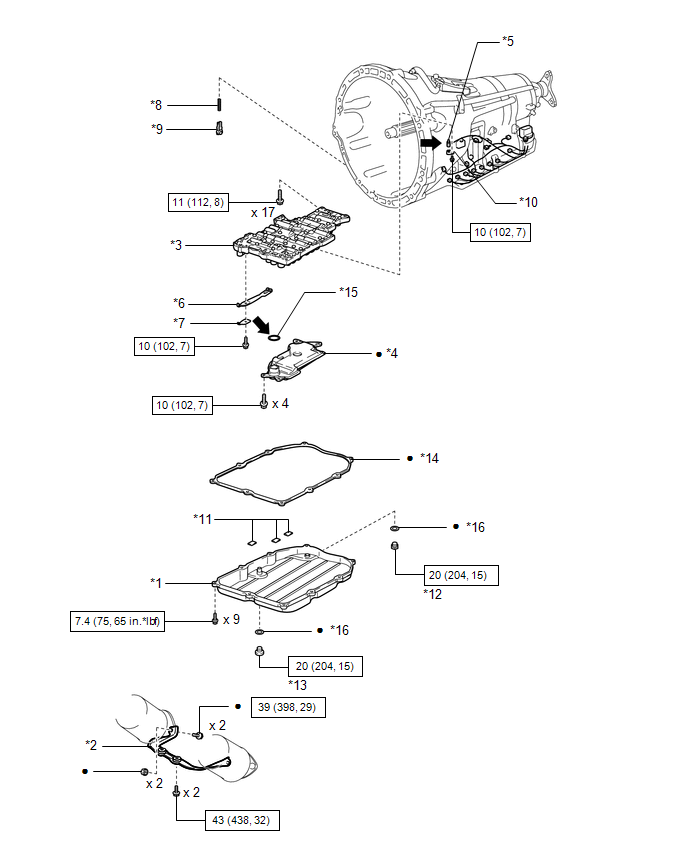

| *1 |
AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY |
*2 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY |
| *3 |
TRANSMISSION VALVE BODY ASSEMBLY |
*4 |
VALVE BODY OIL STRAINER ASSEMBLY |
| *5 |
ATF TEMPERATURE SENSOR |
*6 |
DETENT SPRING |
| *7 |
DETENT SPRING COVER |
*8 |
SPRING |
| *9 |
CHECK BALL BODY |
*10 |
LOCK PLATE |
| *11 |
TRANSMISSION OIL CLEANER MAGNET |
*12 |
DRAIN PLUG |
| *13 |
OVERFLOW PLUG |
*14 |
AUTOMATIC TRANSMISSION OIL PAN GASKET |
| *15 |
O-RING |
*16 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
ATF WS |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

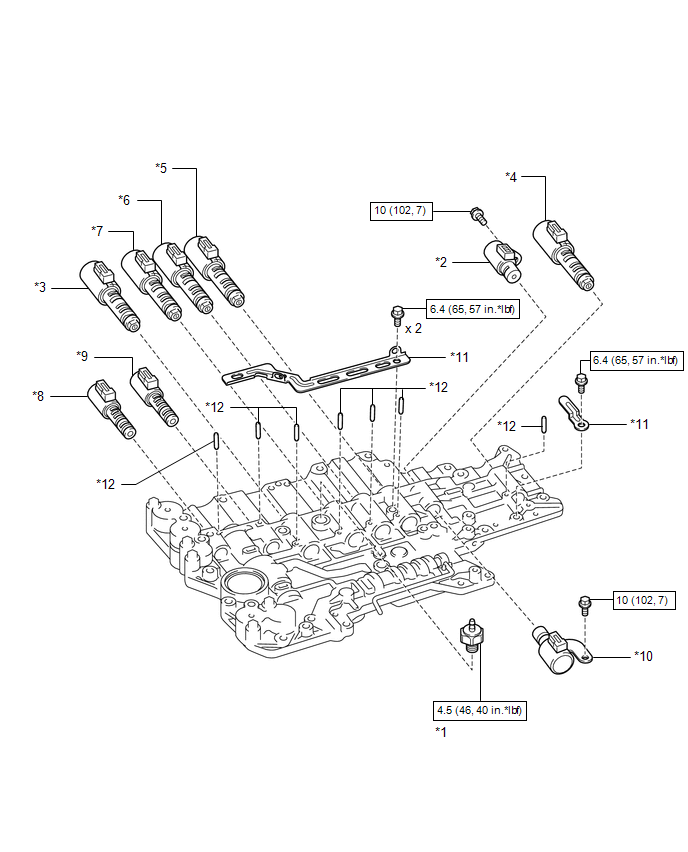

| *1 |
OIL PRESSURE SWITCH |
*2 |
SHIFT SOLENOID VALVE SL |
| *3 |
SHIFT SOLENOID VALVE SL1 |
*4 |
SHIFT SOLENOID VALVE SL2 |
| *5 |
SHIFT SOLENOID VALVE SL3 |
*6 |
SHIFT SOLENOID VALVE SL4 |
| *7 |
SHIFT SOLENOID VALVE SL5 |
*8 |
SHIFT SOLENOID VALVE SLT |
| *9 |
SHIFT SOLENOID VALVE SLU |
*10 |
SHIFT SOLENOID VALVE SR |
| *11 |
SOLENOID LOCK PLATE |
*12 |
STRAIGHT PIN |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
