Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE TRANSMISSION WIRE
    1. Disconnect the transmission revolution sensor (NC3) connector.
      GTY505805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Revolution Sensor (NC3) Connector
      *b Transmission Revolution Sensor (NT) Connector
      *c Transmission Revolution Sensor (SP2) Connector
    2. Disconnect the transmission revolution sensor (NT) connector.
    3. Disconnect the transmission revolution sensor (SP2) connector.
    4. Disconnect the transmission wire connector.

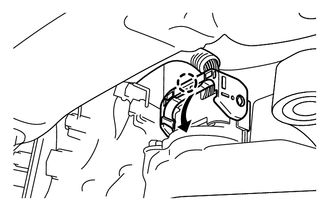

      HINT:

      Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

      GTY512430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and transmission wire from the automatic transmission case sub-assembly.
      GTY466949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
