Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION WIRE
    1. Coat the O-ring with ATF WS.
    2. Install the transmission wire to the automatic transmission case sub-assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    3. Connect the transmission wire connector and raise the lever to engage the claw.

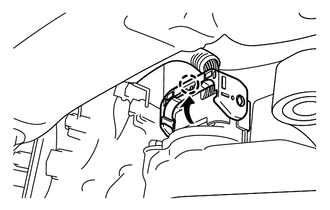

      GTY520786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Push up the lever until the claw of the transmission wire connector makes a connection sound.

    4. Connect the transmission revolution sensor (SP2) connector.
    5. Connect the transmission revolution sensor (NT) connector.
    6. Connect the transmission revolution sensor (NC3) connector.
  2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]
