Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REMOTE OPERATION CONTROLLER ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE SHIFT POSITION INDICATOR

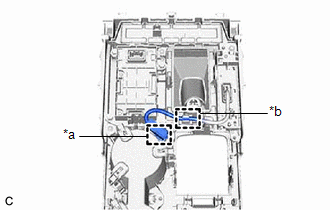

    1. Disengage the clamp and guide.
      GTY968813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide

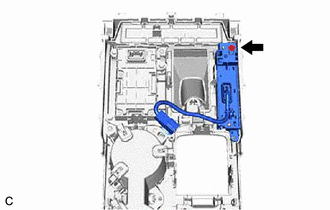

    2. Remove the screw and shift position indicator from the console panel sub-assembly.
      GTY968856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
