Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 6

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 8

  5. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  6. REMOVE NO. 3 DASH PANEL INSULATOR PAD
    1. Using a clip remover, remove the clip.

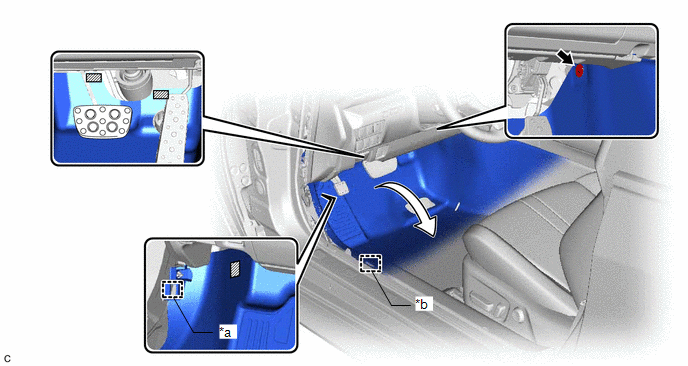

      GTY506250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
      Fastener - -
    2. Disengage the clamp.
    3. Disengage the guide.
    4. Disengage each fastener and turn back the front floor mat as shown in the illustration.
    5. Remove the 2 clips and No. 3 dash panel insulator pad.

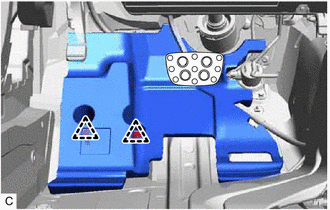

      GTY512393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE KICK DOWN SWITCH ASSEMBLY
    1. Disconnect the kick down switch assembly connector.

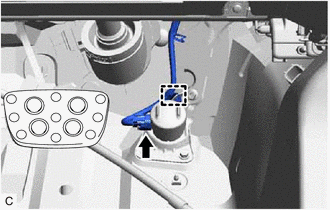

      GTY512394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the nut, 2 bolts and kick down switch assembly from the vehicle body.

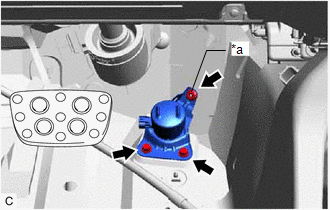

      GTY515455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
