Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL KICK DOWN SWITCH ASSEMBLY
    1. Install the kick down switch assembly to the vehicle body with the nut and 2 bolts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

    2. Engage the clamp.
    3. Connect the kick down switch assembly connector.
  2. INSTALL NO. 3 DASH PANEL INSULATOR PAD
    1. Install the No. 3 dash panel insulator pad with the 2 clips.
    2. Return the front floor mat to its original position as shown in the illustration and engage each fastener.

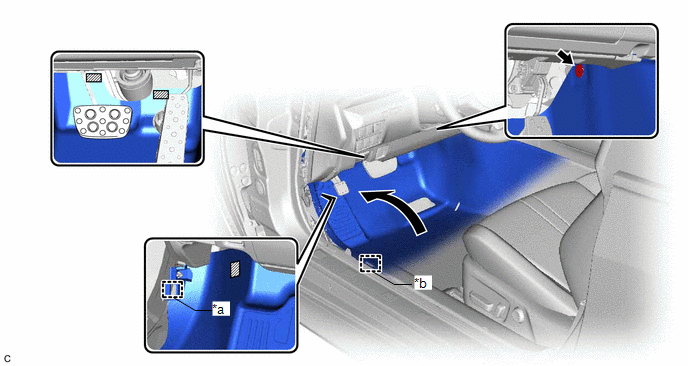

      GTY510569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
      Fastener - -
    3. Engage the guide.
    4. Engage the clamp.
    5. Install the clip.
  3. INSTALL ACCELERATOR PEDAL ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  4. INSTALL FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 28

  5. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

  6. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 7

  7. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 11
