Section 7 (Automatic Transmission System (Aa80E) - Service Information)
>>
Combination Switch
>>
Components [11/2021 - ]
Components [11/2021 - ]
WARNING:
This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

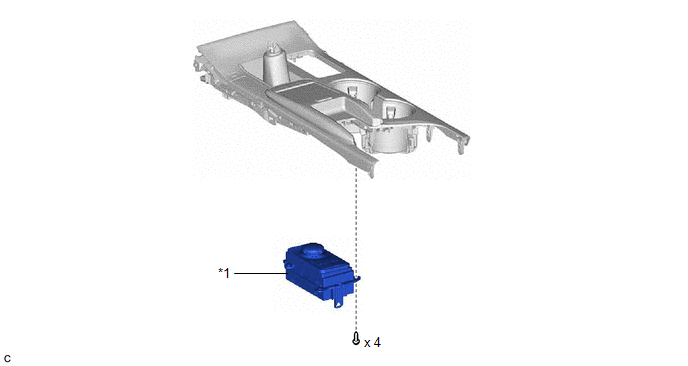

Fig 1: Combination Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COMBINATION SWITCH ASSEMBLY
-
-
