Repair [10/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- REPAIR INTAKE VALVE SEATS NOTE:
- Repair the intake valve seat while checking the seating position.
- Keep the lip free of foreign matter.

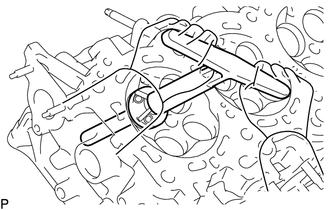

- Using a 45° cutter, resurface the valve seat so that the valve seat width is more than the specification.

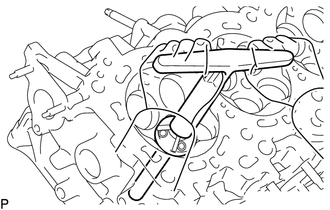

- Using 30° and 60° cutters, correct the valve seat so that the intake valve contacts the entire circumference of the seat. The contact should be in the center of the intake valve seat, and the intake valve seat width should be maintained within the specified range around the entire circumference of the intake valve seat.
*a Standard Width *b 60° *c 45° *d 30° Standard width
1.1 to 1.5 mm (0.0433 to 0.0591 in.)
- Hand-lap the intake valve and intake valve seat with an abrasive compound.
- Check the intake valve seating position.
- REPAIR EXHAUST VALVE SEATS NOTE:
- Repair the seat while checking the seating position.
- Keep the lip free of foreign matter.
- Using a 45° cutter, resurface the valve seat so that the valve seat width is more than the specification.
- Using 30° and 75° cutters, correct the exhaust valve seat so that the exhaust valve contacts the entire circumference of the seat. The contact should be in the center of the exhaust valve seat, and the exhaust valve seat width should be maintained within the specified range around the entire circumference of the exhaust valve seat.
*a Standard Width *b 75° *c 45° *d 30° Standard width
1.3 to 1.7 mm (0.0512 to 0.0669 in.)
- Hand-lap the exhaust valve and exhaust valve seat with an abrasive compound.
- Check the exhaust valve seating position.
