Disassembly [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE VALVE

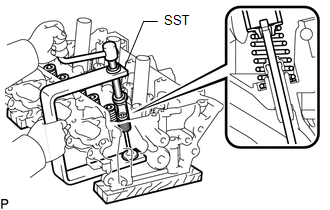

    1. Using SST, compress the inner compression spring and remove the valve spring retainer locks.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY779352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the valve spring retainer, inner compression spring and intake valve.

      HINT:

      Arrange the removed parts in the correct order.

  2. REMOVE EXHAUST VALVE

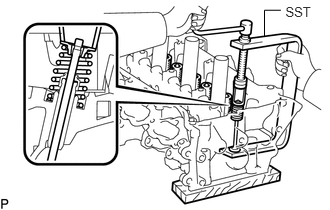

    1. Using SST, compress the inner compression spring and remove the valve spring retainer locks.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY625673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the valve spring retainer, inner compression spring and exhaust valve.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE VALVE STEM OIL SEAL

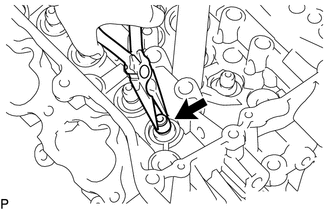

    1. Using needle-nose pliers, remove the valve stem oil seals.
      GTY600604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VALVE SPRING SEAT

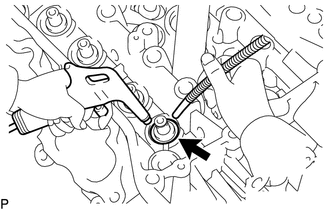

    1. Using compressed air and a magnet hand, remove the valve spring seats by blowing air onto them.
      GTY552613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 STRAIGHT SCREW PLUG

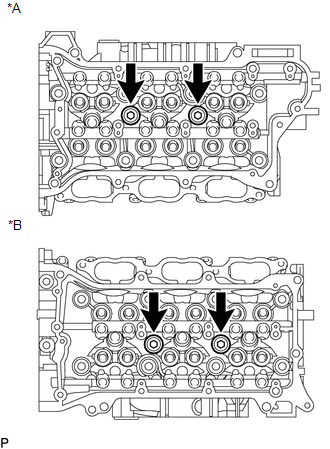

    GTY823626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Bank 1
    *B for Bank 2
    NOTE:

    If water leaks from a No. 1 straight screw plug or the plug is corroded, replace it.

    1. Using a 10 mm hexagon wrench, remove the 4 No. 1 straight screw plugs and 4 gaskets.
  6. REMOVE NO. 2 STRAIGHT SCREW PLUG

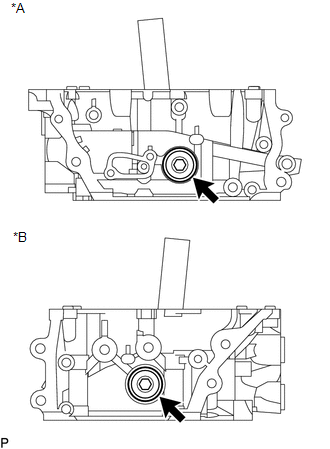

    GTY777948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Bank 1
    *B for Bank 2
    NOTE:

    If water leaks from a No. 2 straight screw plug or the plug is corroded, replace it.

    1. Using a 14 mm hexagon wrench, remove the 2 No. 2 straight screw plugs and 2 gaskets.
  7. REMOVE NO. 3 STRAIGHT SCREW PLUG

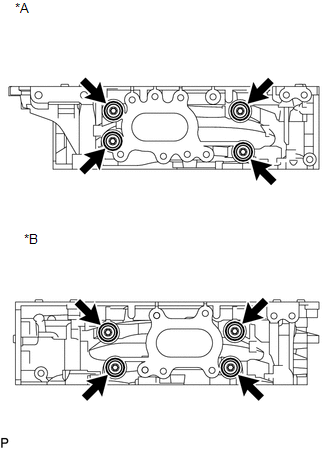

    GTY792449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A for Bank 1
    *B for Bank 2
    NOTE:

    If water leaks from a No. 3 straight screw plug or the plug is corroded, replace it.

    1. Using a 10 mm hexagon wrench, remove the 8 No. 3 straight screw plugs and 8 gaskets.
  8. REMOVE UNION
    NOTE:

    It is not necessary to remove the union unless it is being replaced.

  9. REMOVE STUD BOLT
    NOTE:

    If the stud bolt is deformed or the threads are damaged, replace it.
