Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

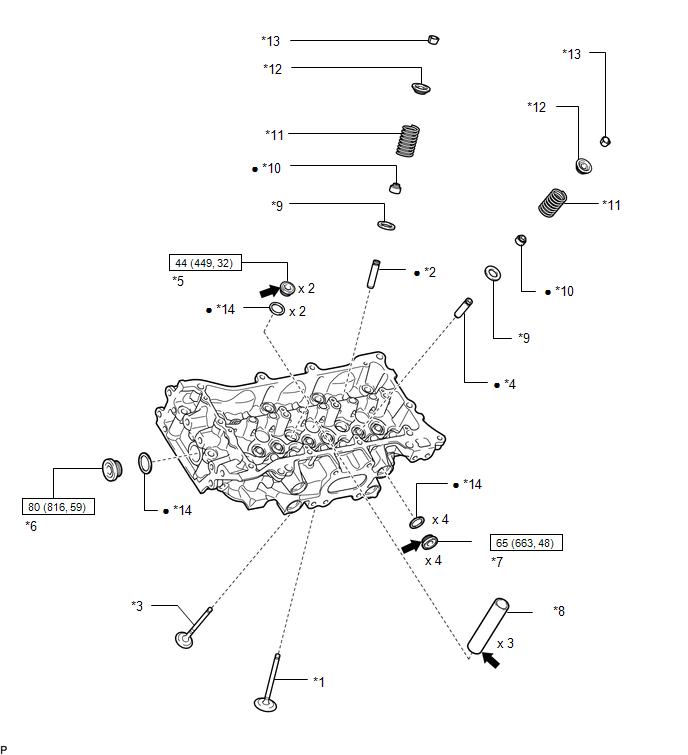

| *1 |
EXHAUST VALVE |
*2 |
EXHAUST VALVE GUIDE BUSH |
| *3 |
INTAKE VALVE |
*4 |
INTAKE VALVE GUIDE BUSH |
| *5 |
NO. 1 STRAIGHT SCREW PLUG |
*6 |
NO. 2 STRAIGHT SCREW PLUG |
| *7 |
NO. 3 STRAIGHT SCREW PLUG |
*8 |
SPARK PLUG TUBE |
| *9 |
VALVE SPRING SEAT |
*10 |
VALVE STEM OIL SEAL |
| *11 |
INNER COMPRESSION SPRING |
*12 |
VALVE SPRING RETAINER |
| *13 |
VALVE SPRING RETAINER LOCK |
*14 |
GASKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

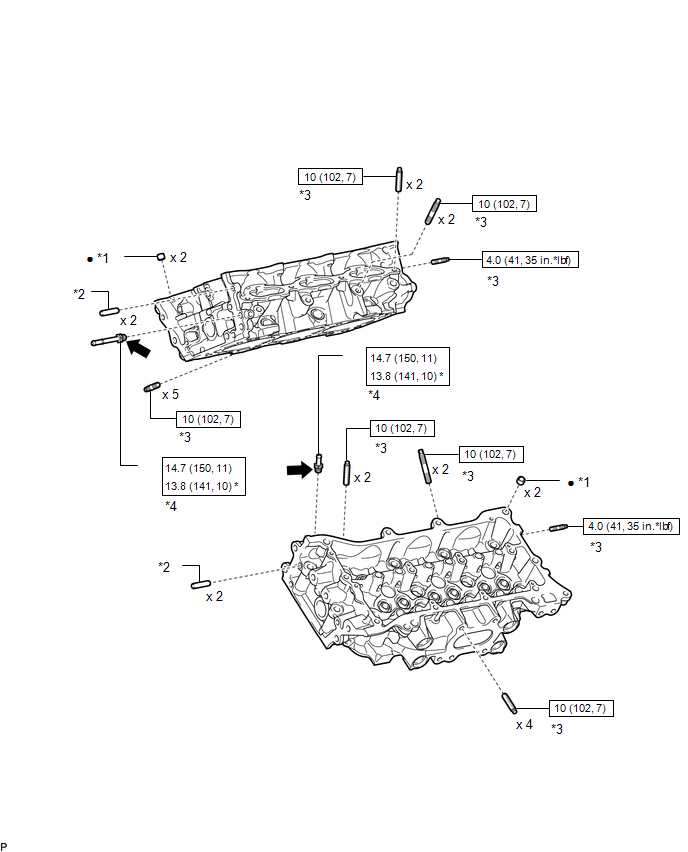

| *1 |
RING PIN |
*2 |
STRAIGHT PIN |
| *3 |
STUD BOLT |
*4 |
UNION |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with Union Nut Wrench |
| • |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
| * |
Precoated part |
- |
- |
