Replacement [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REPLACE STRAIGHT PIN

NOTE:

It is not necessary to remove the straight pin unless it is being replaced.

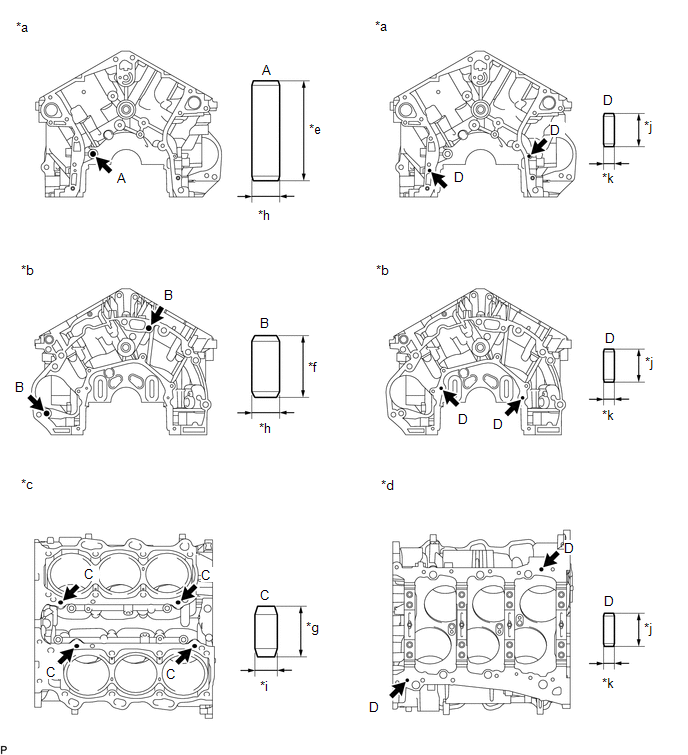

Using a plastic-faced hammer, tap in 13 new straight pins to the cylinder block sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front Side	*b	Rear Side
*c	Upper Side	*d	Lower Side
*e	36 mm (1.417 in.)	*f	22 mm (0.867 in.)
*g	18 mm (0.709 in.)	*h	10 mm (0.394 in.)
*i	8 mm (0.315 in.)	*j	12 mm (0.472 in.)
*k	4 mm (0.157 in.)	-	-

Standard Protrusion

Item	Specified Condition
Pin A	22.5 to 23.5 mm (0.886 to 0.925 in.)
Pin B	10.5 to 11.5 mm (0.413 to 0.453 in.)
Pin C	8.5 to 9.5 mm (0.335 to 0.374 in.)
Pin D	5.5 to 6.5 mm (0.217 to 0.256 in.)

REPLACE STUD BOLT

NOTE:

If a stud bolt is deformed or its threads are damaged, replace it.

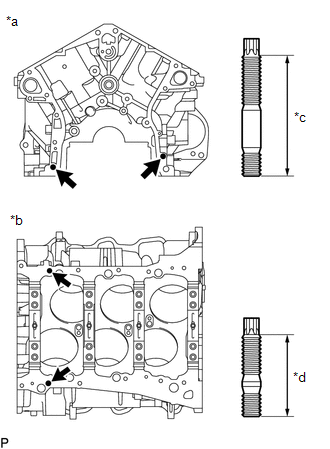

w/ Front Side Stud Bolt:

Using an E8 "TORX" socket wrench, install the stud bolts.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

*a	Front Side
*b	Lower Side
*c	52 mm (2.05 in.)
*d	35 mm (1.38 in.)

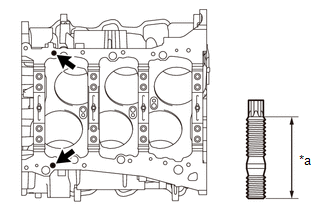

w/o Front Side Stud Bolt:

Using an E8 "TORX" socket wrench, install the stud bolts.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

*a	35 mm (1.38 in.)
