On-Vehicle Inspection [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK VALVE CLEARANCE

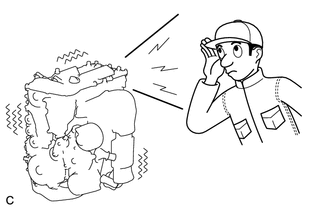

    1. Check for noise and vibration.
      GTY162837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check for valve noise or rough idle.
      2. Judge whether the valve clearance needs to be adjusted.

        HINT:

        If the valve noise is too loud or the idle is rough, inspect the valve clearance.

        Refer to ADJUSTMENT [11/2021 - ]
