Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
Refer to REMOVAL [11/2021 - ]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Using SST, hold the crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-3801009330-00021
1. 09214-00011

Remove the 10 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly and crankshaft angle sensor rotor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ENGINE REAR OIL SEAL

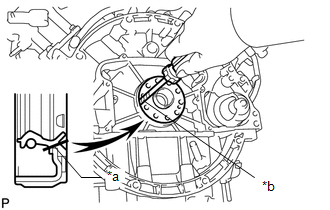

Using a knife, cut through the lip of the engine rear oil seal.

*a	Cut Position
*b	Protective Tape

Using a screwdriver, pry out the engine rear oil seal.
NOTE:
After removal, check the crankshaft for damage.

If it is damaged, smooth the surface with 400-grit sandpaper.

HINT:

Tape the screwdriver tip before use.
