Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE REAR OIL SEAL
    1. Apply MP grease to the lip of a new engine rear oil seal.
    2. Using SST and a hammer, tap in the engine rear oil seal.
      GTY512677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Standard Depth
      • SST: 09223-1503009950-70010

      Standard Depth

      -1.0 to 0 mm (-0.0394 to 0 in.)

      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap in the engine rear oil seal at an angle.
      • Do not tap in the engine rear oil seal excessively.
  2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

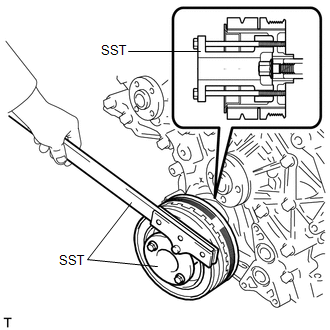

    1. Using SST, hold the crankshaft pulley.
      GTY521231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-3801009330-00021
        1. 09214-00011
    2. Clean the 10 bolt holes.
    3. Install the crankshaft angle sensor rotor.
      GTY495803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin Hole
      *b Pin
      Front of Engine

      HINT:

      Align the pin hole of the crankshaft angle sensor rotor with the pin of the crankshaft.

    4. Install the drive plate and ring gear sub-assembly and rear drive plate spacer on to the crankshaft.
      GTY513033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Plate and Ring Gear Sub-assembly
      *2 Rear Drive Plate Spacer
      Front of Engine

      HINT:

      Make sure to install the drive plate and ring gear sub-assembly and rear drive plate spacer in the correct orientation.

    5. Install and uniformly tighten 10 new bolts in the sequence shown in the illustration.
      Fig 1: Drive Plate Bolts Tightening Sequence
      GTY513299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 29.5 N.m (301 kgf/cm, 22 ft.lbf)

    6. Mark the upside of each drive plate and ring gear sub-assembly installation bolt with paint.
    7. Tighten the drive plate and ring gear sub-assembly installation bolts another 90° as shown in the illustration.
    8. Check that the paint marks are now at 90° angle.
      GTY499042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      Up
  3. INSPECT DRIVE PLATE

    Refer to PROCEDURE - Step 2

  4. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  5. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6
