Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

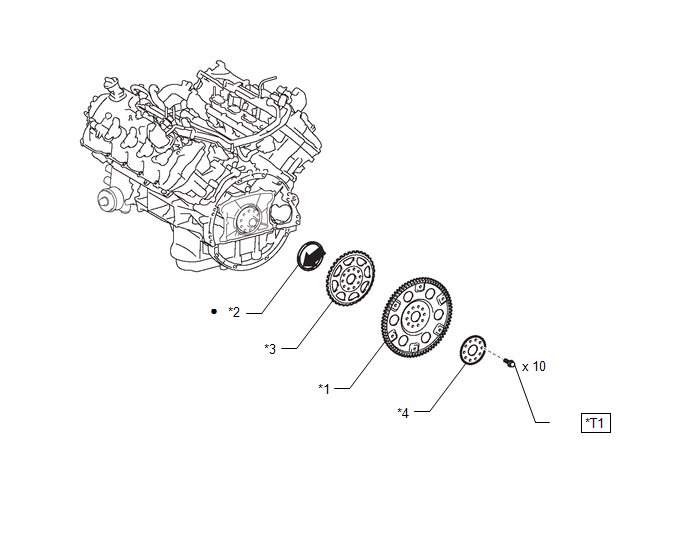

| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | ENGINE REAR OIL SEAL |
| *3 | CRANKSHAFT ANGLE SENSOR ROTOR | *4 | REAR DRIVE PLATE SPACER |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | MP Grease | |
| *T1 | 1st: 29.5 (301, 22) 2nd: Turn 90° |
- | - |
