Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR ASSEMBLY
Refer to REMOVAL [11/2021 - ]
REMOVE V-RIBBED BELT
See step 7

REMOVE CRANKSHAFT PULLEY

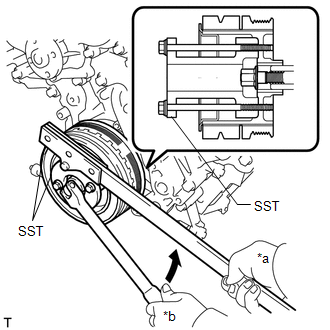

Using SST and a 22 mm deep socket wrench, hold the crankshaft pulley and loosen the crankshaft pulley set bolt until only 2 or 3 threads are screwed into the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09213-3801009330-00021
1. 09214-00011

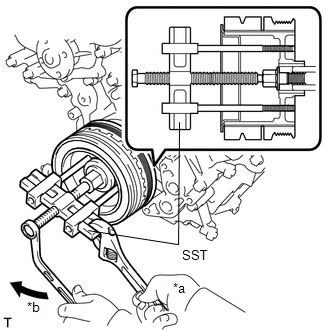

Using SST, remove the crankshaft pulley set bolt and crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09950-50013
1. 09951-05010
2. 09952-05010
3. 09953-05010
4. 09954-05070

HINT:

Apply molybdenum grease to the threads and tip of SST (center bolt) prior to use.

REMOVE CRANKSHAFT TIMING GEAR KEY

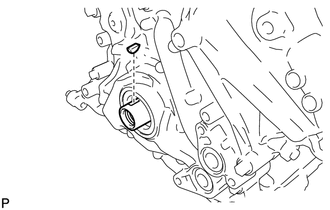

Using a screwdriver, remove the crankshaft timing gear key from the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tape the screwdriver tip before use.

REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

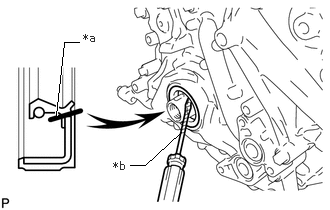

Using a knife, cut through the lip of the timing gear case or timing chain case oil seal.

Using a screwdriver, pry out the timing gear case or timing chain case oil seal.

*a	Cut Position
*b	Protective Tape

NOTE:

After the removal, check the crankshaft for damage.

If it is damaged, smooth the surface with 400-grit sandpaper.

HINT:

Tape the screwdriver tip before use.
