Components [11/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

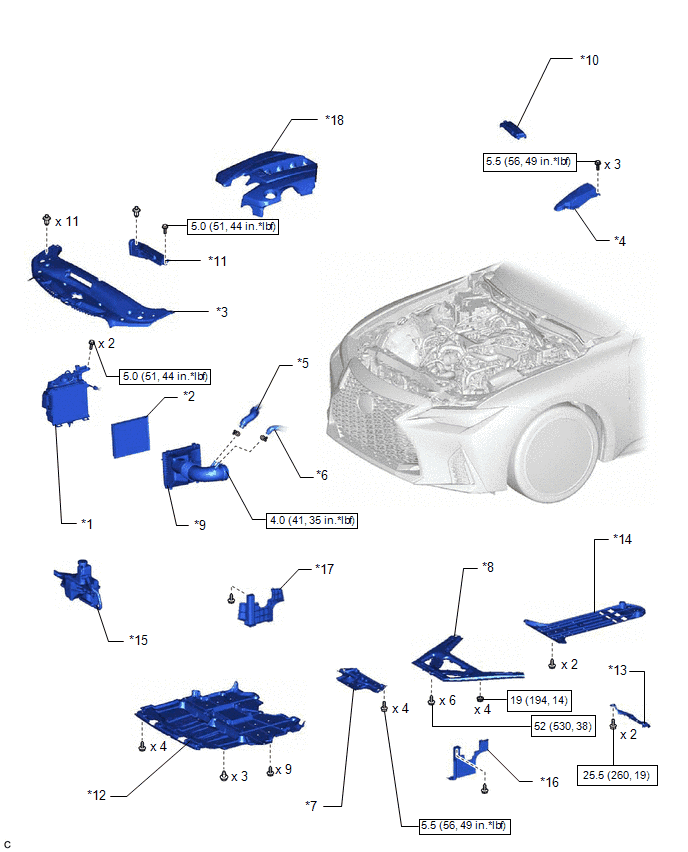

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 7)
GTY1084361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER CASE SUB-ASSEMBLY *2 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*3 COOL AIR INTAKE DUCT SEAL *4 ENGINE ROOM ECU COVER
*5 NO. 2 VENTILATION HOSE *6 NO. 3 VENTILATION HOSE
*7 FRONT LOWER SUSPENSION MEMBER PROTECTOR *8 FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
*9 AIR CLEANER CAP WITH AIR CLEANER HOSE *10 NO. 1 ENGINE ROOM RELAY BLOCK COVER
*11 INLET NO. 1 AIR CLEANER *12 ENGINE UNDER COVER
*13 ENGINE UNDER COVER AIR GUIDE BRACKET *14 NO. 2 ENGINE UNDER COVER
*15 RADIATOR RESERVE TANK ASSEMBLY *16 REAR ENGINE UNDER COVER LH
*17 REAR ENGINE UNDER COVER RH *18 V-BANK COVER SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -

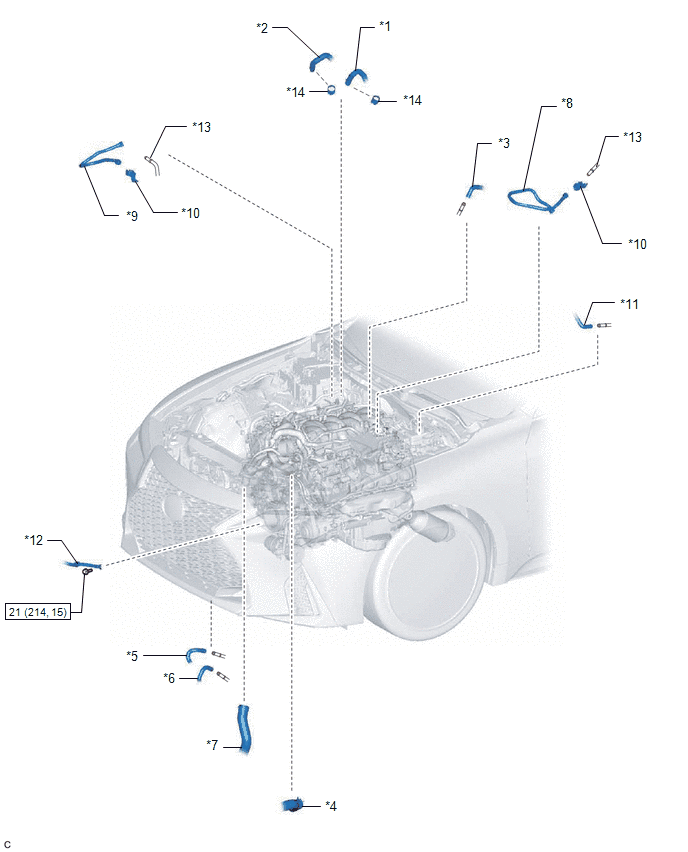

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 7)
GTY1084460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEATER WATER INLET HOSE *2 HEATER WATER OUTLET HOSE
*3 NO. 1 FUEL VAPOR FEED HOSE *4 NO. 1 RADIATOR HOSE
*5 NO. 1 OIL COOLER INLET HOSE *6 NO. 1 OIL COOLER OUTLET HOSE
*7 NO. 2 RADIATOR HOSE *8 FUEL TUBE SUB-ASSEMBLY
*9 NO. 2 FUEL TUBE SUB-ASSEMBLY *10 FUEL PIPE CLAMP
*11 UNION TO CHECK VALVE HOSE *12 GROUND CABLE
*13 FUEL PIPE *14 WATER HOSE SET
N.m (kgf/cm, ft.lbf): Specified torque - -

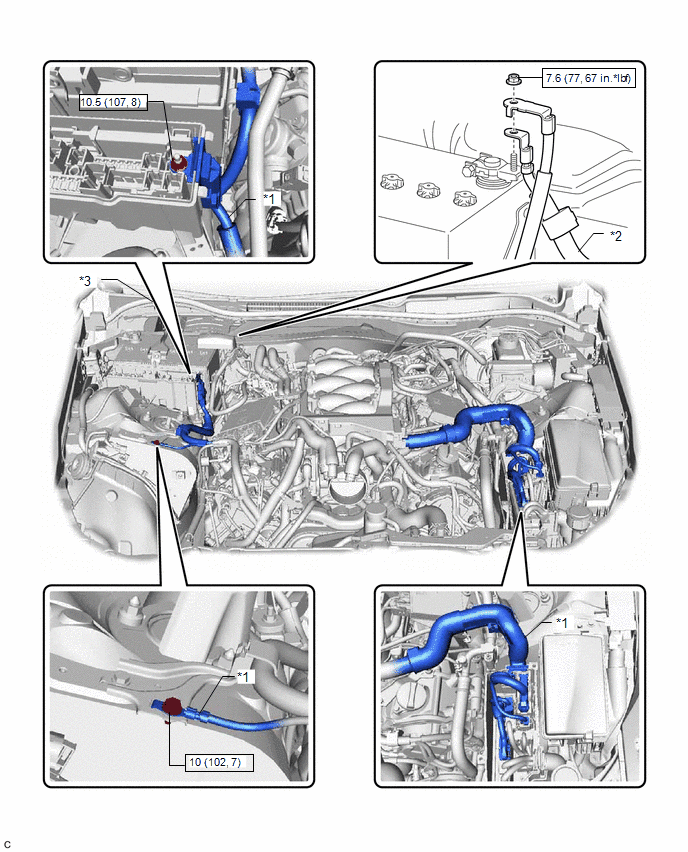

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 7)
GTY1084408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE WIRE *2 NO. 2 ENGINE WIRE
*3 NO. 1 CENTER COWL TOP VENTILATOR LOUVER - -
N.m (kgf/cm, ft.lbf): Specified torque - -

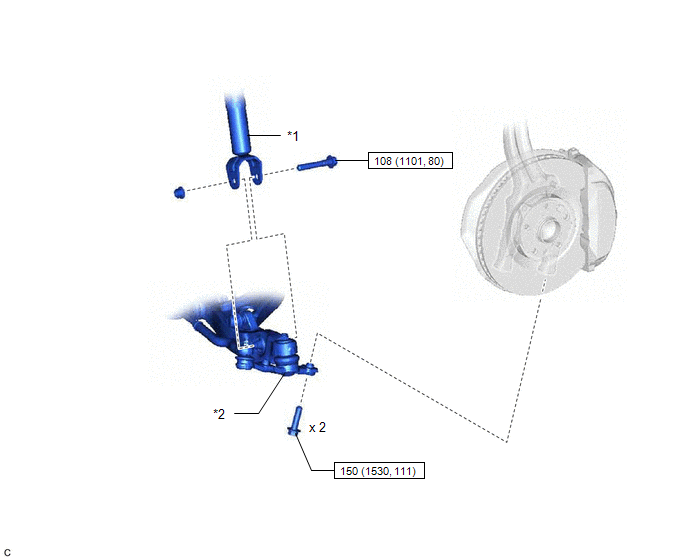

Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 7)
GTY1084259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SHOCK ABSORBER ASSEMBLY LH *2 FRONT LOWER BALL JOINT ASSEMBLY LH
N.m (kgf/cm, ft.lbf): Specified torque - -

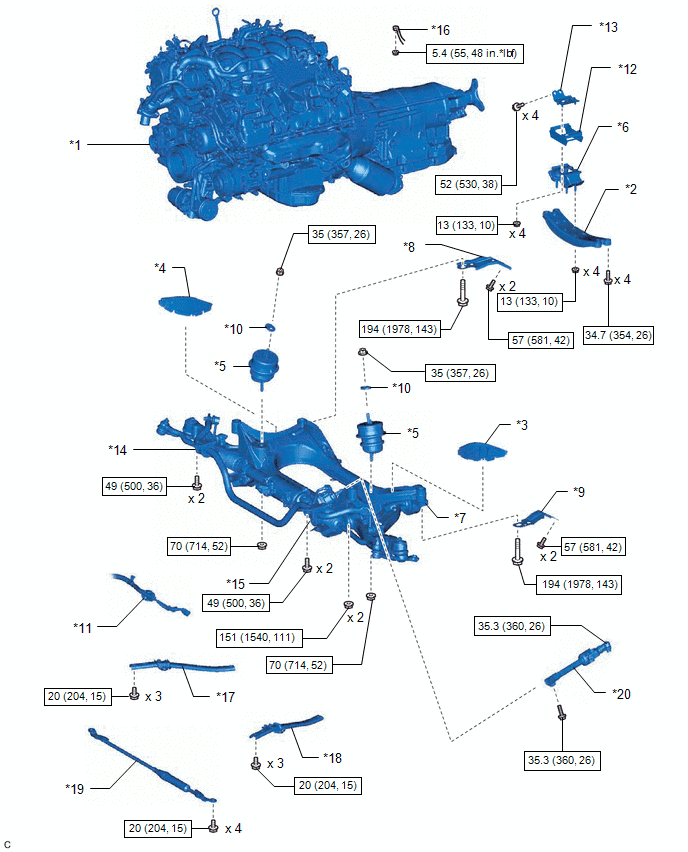

Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 7)
GTY1084146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE ASSEMBLY WITH TRANSMISSION *2 REAR ENGINE MOUNTING MEMBER
*3 ENGINE UNDER COVER SUB-ASSEMBLY LH *4 ENGINE UNDER COVER SUB-ASSEMBLY RH
*5 FRONT ENGINE MOUNTING INSULATOR *6 REAR ENGINE MOUNTING INSULATOR
*7 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *8 STRUT BAR BRACKET REINFORCEMENT RH
*9 STRUT BAR BRACKET REINFORCEMENT LH *10 ENGINE MOUNTING SPACER
*11 WIRE HARNESS *12 REAR ENGINE MOUNTING HEAT INSULATOR
*13 NO. 1 ENGINE MOUNTING BRACKET *14 FRONT NO. 2 STABILIZER BRACKET RH
*15 FRONT NO. 2 STABILIZER BRACKET LH *16 NO. 2 EARTH WIRE
*17 NO. 1 FRAME CROSSMEMBER ASSEMBLY *18 NO. 2 FRAME CROSSMEMBER ASSEMBLY
*19 SUSPENSION TOWER DAMPER *20 STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -

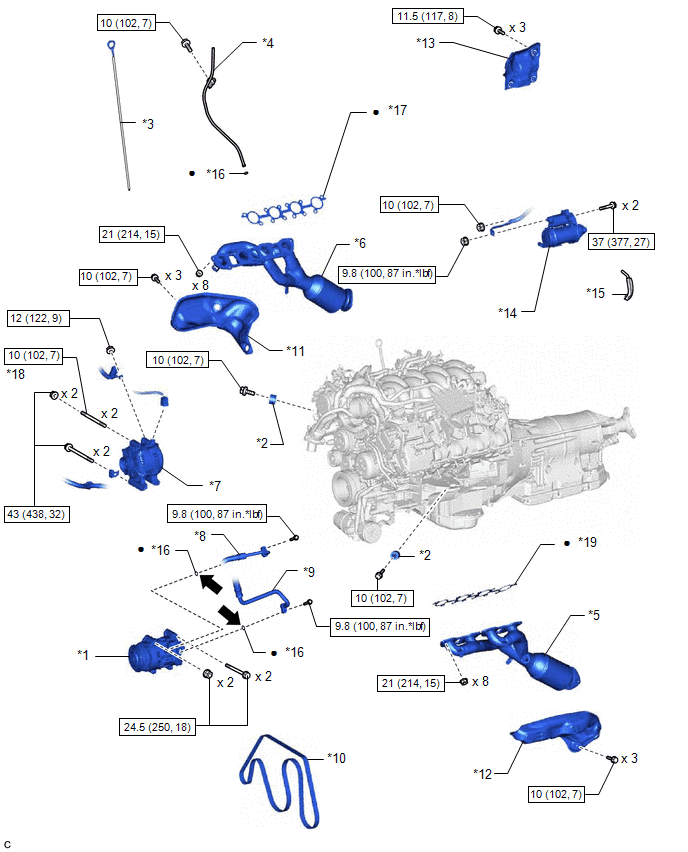

Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 7)
GTY1084289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMPRESSOR ASSEMBLY WITH PULLEY *2 ENGINE MOUNTING DAMPER
*3 ENGINE OIL LEVEL DIPSTICK *4 ENGINE OIL LEVEL DIPSTICK GUIDE
*5 EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) *6 EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
*7 GENERATOR ASSEMBLY *8 NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
*9 SUCTION HOSE *10 V-RIBBED BELT
*11 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR *12 NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*13 NO. 3 EXHAUST MANIFOLD HEAT INSULATOR *14 STARTER ASSEMBLY
*15 FLYWHEEL HOUSING SIDE COVER *16 O-RING
*17 EXHAUST MANIFOLD TO HEAD GASKET *18 STUD BOLT
*19 EXHAUST MANIFOLD TO HEAD GASKET LH - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 12 or equivalent - -

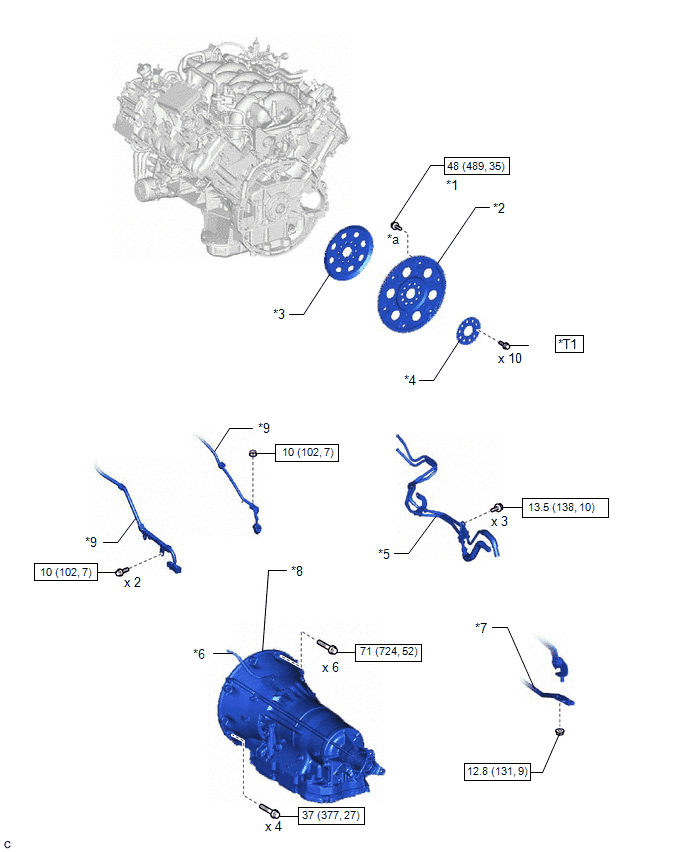

Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 7)
GTY1084177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 CRANKSHAFT ANGLE SENSOR ROTOR *4 REAR DRIVE PLATE SPACER
*5 OIL COOLER TUBE *6 BREATHER PLUG HOSE
*7 FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY *8 AUTOMATIC TRANSMISSION ASSEMBLY
*9 WIRE HARNESS - -
*a Black: x 1
Silver: x 5		 - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
*T1 1st: 29.5 (301, 22)
2nd: Turn 90°		 - -
