Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  2

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  4. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 6

  6. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. REMOVE V-RIBBED BELT

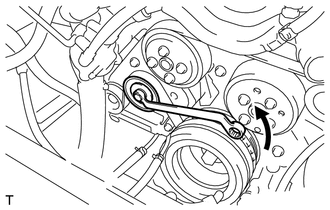

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise and remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
      GTY122469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The pulley bolt for the V-ribbed belt tensioner assembly is reverse threaded.

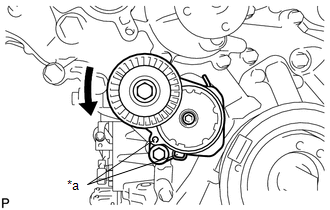

    2. Rotate the V-ribbed belt tensioner assembly counterclockwise to align the holes and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly in place.
      GTY1082703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hole
