Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

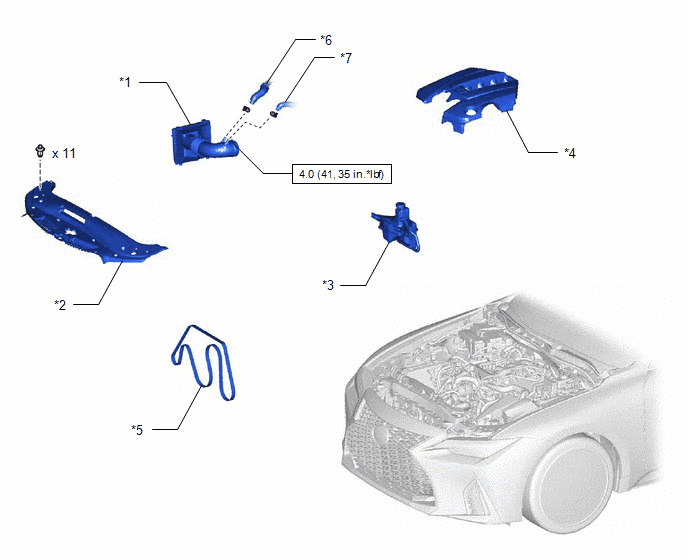

| *1 |
AIR CLEANER CAP WITH AIR CLEANER HOSE |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
RADIATOR RESERVE TANK ASSEMBLY |
*4 |
V-BANK COVER SUB-ASSEMBLY |
| *5 |
V-RIBBED BELT |
*6 |
NO. 2 VENTILATION HOSE |
| *7 |
NO. 3 VENTILATION HOSE |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
