Replacement [11/2021 - ]: Procedure
- REPLACE INTAKE VALVE GUIDE BUSH
- Heat the cylinder head to 80 to 100°C (176 to 212°F).
- Place the cylinder head on wooden blocks.WARNING:
Be sure to wear protective gloves.

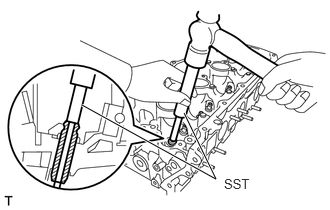

- Using SST and a hammer, tap out the intake valve guide bushes.
- SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
- SST: 09201-10000
- Using a caliper gauge, measure the intake valve guide bush bore diameter of the cylinder head.
Standard Intake Valve Guide Bush Bore Diameter
10.285 to 10.306 mm (0.405 to 0.406 in.)
If the intake valve guide bush bore diameter of the cylinder head is more than 10.306 mm (0.406 in.), machine the bush bore to a dimension of 10.335 to 10.356 mm (0.407 to 0.408 in.) to install an O/S 0.05 intake valve guide bush.
If the intake valve guide bush bore diameter of the cylinder head is more than 10.356 mm (0.408 in.), replace the cylinder head.
- Select a new intake valve guide bush (STD or O/S 0.05), and measure its diameter.
- Machine the bush bore to a diameter of the selected intake valve guide bush.
Intake Valve Guide Bush Bore Diameter
Bush Size Bush Bore Diameter STD 10.285 to 10.306 mm
(0.405 to 0.406 in.)O/S 0.05 10.335 to 10.356 mm
(0.407 to 0.408 in.) - Heat the cylinder head to 80 to 100°C (176 to 212°F).

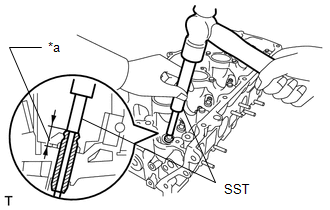

- Using SST and a hammer, tap in a new intake valve guide bush to the specified protrusion height.
*a Height - SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
Standard Protrusion Height
16.9 to 17.3 mm (0.665 to 0.681 in.)
- SST: 09201-10000

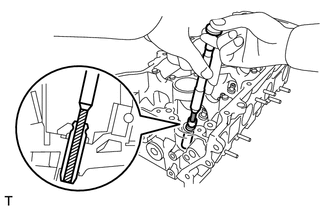

- Using a sharp 5.5 mm reamer, ream the intake valve guide bush to obtain the specified clearance between the intake valve guide bush and valve stem.
- REPLACE EXHAUST VALVE GUIDE BUSH
- Heat the cylinder head to 80 to 100°C (176 to 212°F).
- Place the cylinder head on wooden blocks.WARNING:
Be sure to wear protective gloves.

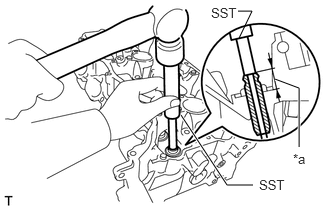

- Using SST and a hammer, tap out the exhaust valve guide bushes.
- SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
- SST: 09201-10000
- Using a caliper gauge, measure the exhaust valve guide bush bore diameter of the cylinder head.
Standard Exhaust Valve Guide Bore Diameter
10.285 to 10.306 mm (0.405 to 0.406 in.)
If the exhaust valve guide bush bore diameter of the cylinder head is more than 10.306 mm (0.406 in.), machine the bush bore to a dimension of 10.335 to 10.356 mm (0.407 to 0.408 in.) to install an O/S 0.05 exhaust valve guide bush.
If the exhaust valve guide bush bore diameter of the cylinder head is more than 10.356 mm (0.408 in.), replace the cylinder head.
- Select a new exhaust valve guide bush (STD or O/S 0.05), and measure its diameter.
- Machine the bush bore to a diameter of the selected exhaust valve guide bush.
Exhaust Valve Guide Bush Bore Diameter
Bush Size Bush Bore Diameter STD 10.285 to 10.306 mm
(0.405 to 0.406 in.)O/S 0.05 10.335 to 10.356 mm
(0.407 to 0.408 in.) - Heat the cylinder head to 80 to 100°C (176 to 212°F).

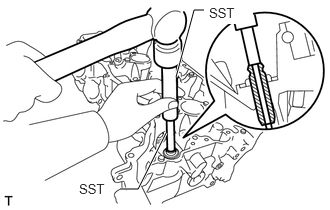

- Using SST and a hammer, tap in a new exhaust valve guide bush to the specified protrusion height.
*a Height - SST: 09201-10000
- 09201-01050
- SST: 09950-70010
- 09951-07100
Standard Protrusion Height
16.9 to 17.3 mm (0.665 to 0.681 in.)
- SST: 09201-10000

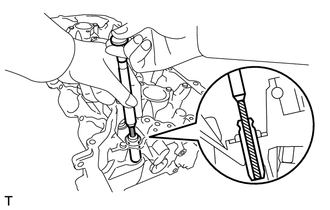

- Using a sharp 5.5 mm reamer, ream the exhaust valve guide bush to obtain the specified clearance between the exhaust valve guide bush and valve stem.

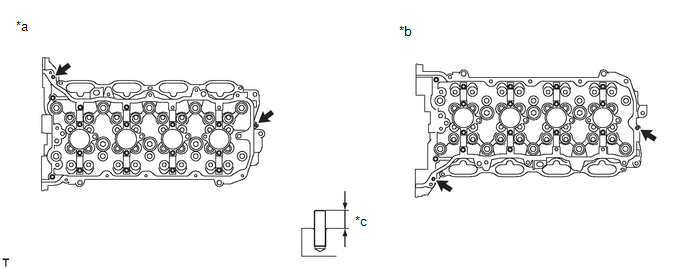

- REPLACE STRAIGHT PIN NOTE:
It is not necessary to remove the straight pins unless they are being replaced.
- REPLACE STUD BOLT NOTE:
If a stud bolt is deformed or its threads are damaged, replace it.
- Using E6 and E8 "TORX" socket wrenches, remove the stud bolts.
- Using E6 and E8 "TORX" socket wrenches, install the stud bolts.

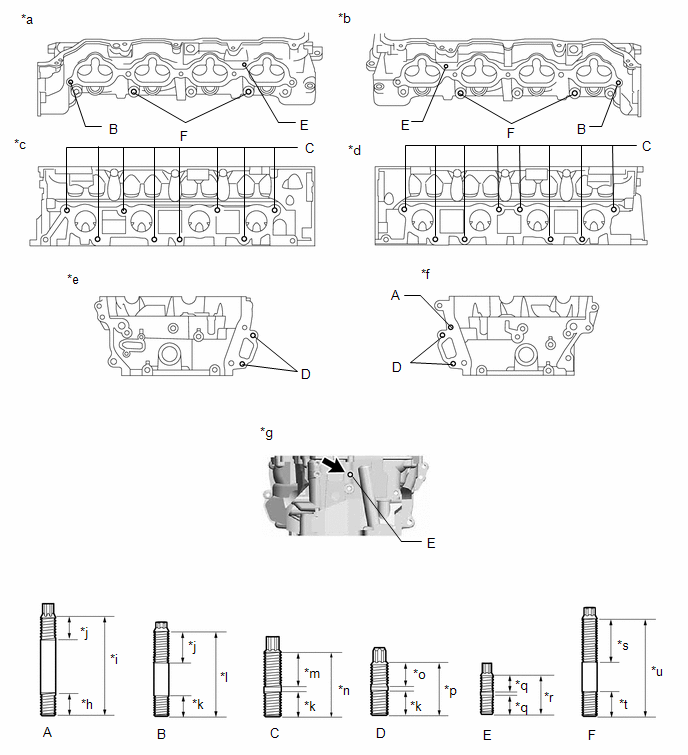

*a for Bank 2 Intake Side *b for Bank 1 Intake Side *c for Bank 2 Exhaust Side *d for Bank 1 Exhaust Side *e for Bank 2 Front Side *f for Bank 1 Front Side *g for Bank 1 Rear Side *h 12 mm (0.472 in.) *i 52 mm (2.05 in.) *j 24 mm (0.945 in.) *k 13 mm (0.512 in.) *l 45 mm (1.77 in.) *m 20 mm (0.787 in.) *n 35 mm (1.38 in.) *o 14 mm (0.551 in.) *p 29 mm (1.14 in.) *q 9 mm (0.354 in.) *r 19 mm (0.748 in.) *s 26 mm (1.02 in.) *t 16.7 mm (0.657 in.) *u 51.7 mm (2.04 in.) - - Stud Bolt (A), (B), (C), (D), (F)
Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)
Stud Bolt (E)
Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)
