Inspection [11/2021 - ]: Procedure
- INSPECT CYLINDER HEAD FOR FLATNESS
- Using a precision straightedge and feeler gauge, check the surfaces which contact the cylinder block sub-assembly and manifolds for warpage.
*a Cylinder Head Bottom *b Intake Side *c Exhaust Side - - Standard Warpage
Item Specified Condition Cylinder Head Bottom 0.05 mm (0.00197 in.) Intake Side 0.08 mm (0.00315 in.) Exhaust Side 0.05 mm (0.00197 in.) Maximum Warpage
0.10 mm (0.00394 in.)
If the warpage is more than the maximum, replace the cylinder head.
- Using a precision straightedge and feeler gauge, check the surfaces which contact the cylinder block sub-assembly and manifolds for warpage.

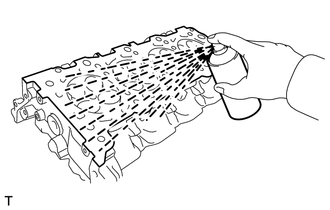

- INSPECT CYLINDER HEAD FOR CRACKS
- INSPECT INTAKE VALVE
- Using a micrometer, measure the diameter of the valve stem.
Standard Valve Stem Diameter
5.470 to 5.485 mm (0.215 to 0.216 in.)
If the valve stem diameter is not as specified, check the valve guide bush oil clearance.
See step 8
- Using a vernier caliper, measure the valve head margin thickness.
*a Margin Thickness Standard Margin Thickness
1.25 mm (0.0492 in.)
Minimum Margin Thickness
0.50 mm (0.0197 in.)
If the margin thickness is less than the minimum, replace the intake valve.
- Using a vernier caliper, measure the valve overall length.
Standard Overall Length
105.85 mm (4.17 in.)
Minimum Overall Length
105.35 mm (4.15 in.)
If the overall length is less than the minimum, replace the intake valve.
*a Overall Length
- Using a micrometer, measure the diameter of the valve stem.
- INSPECT EXHAUST VALVE
- Using a micrometer, measure the diameter of the valve stem.
Standard Valve Stem Diameter
5.465 to 5.480 mm (0.215 to 0.216 in.)
If the valve stem diameter is not as specified, check the valve guide bush oil clearance.
See step 8
- Using a vernier caliper, measure the valve head margin thickness.
*a Margin Thickness Standard Margin Thickness
1.4 mm (0.0551 in.)
Minimum Margin Thickness
0.50 mm (0.0197 in.)
If the margin thickness is less than the minimum, replace the exhaust valve.
- Using a vernier caliper, measure the valve overall length.
Standard Overall Length
110.40 mm (4.35 in.)
Minimum Overall Length
109.90 mm (4.33 in.)
If the overall length is less than the minimum, replace the exhaust valve.
*a Overall Length
- Using a micrometer, measure the diameter of the valve stem.
- INSPECT INTAKE VALVE SEAT

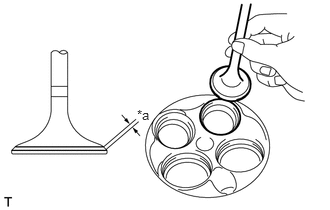

- Apply a light coat of Prussian blue to the intake valve face.
- Lightly press the intake valve face against the intake valve seat.NOTE:
Do not rotate the intake valve.
- Check the intake valve face and intake valve seat by using the following procedure:
*a Width - Check that the intake valve seat contacts the middle of the intake valve face with the width between 1.1 and 1.5 mm (0.0433 and 0.0591 in.).
If not, resurface the intake valve seat.
- Check that the contact surfaces of the intake valve seat and intake valve face are even around the entire valve seat.
If not, resurface the intake valve seat.
- Check that the intake valve seat contacts the middle of the intake valve face with the width between 1.1 and 1.5 mm (0.0433 and 0.0591 in.).
- INSPECT EXHAUST VALVE SEAT
- Apply a light coat of Prussian blue to the exhaust valve face.
- Lightly press the exhaust valve face against the exhaust valve seat.NOTE:
Do not rotate the exhaust valve.
- Check the exhaust valve face and exhaust valve seat by using the following procedure:
*a Width - Check that the exhaust valve seat contacts the middle of the exhaust valve face with the width between 1.1 to 1.5 mm (0.0433 to 0.0591 in.).
If not, resurface the exhaust valve seat.
- Check that the contact surfaces of the exhaust valve seat and exhaust valve face are even around the entire valve seat.
If not, resurface the exhaust valve seat.
- Check that the exhaust valve seat contacts the middle of the exhaust valve face with the width between 1.1 to 1.5 mm (0.0433 to 0.0591 in.).
- INSPECT INNER COMPRESSION SPRING
- Using a vernier caliper, measure the free length of the inner compression spring.
Standard Free Length
Intake
52.17 mm (2.05 in.)
Exhaust
52.16 mm (2.05 in.)
If the free length is not as specified, replace the inner compression spring.
- Using a steel square, measure the deviation of the inner compression spring.
*a Deviation Maximum Deviation
1.8 mm (0.0709 in.)
Maximum Angle (Reference)
2°
If the deviation is greater than the maximum, replace the inner compression spring.
- Using a vernier caliper, measure the free length of the inner compression spring.
- INSPECT VALVE GUIDE BUSH OIL CLEARANCE
- Using a caliper gauge, measure the inside diameter of the valve guide bush.
Standard Valve Guide Bush Inside Diameter
5.510 to 5.530 mm (0.217 to 0.218 in.)
- Subtract the valve stem diameter measurement from the valve guide bush inside diameter measurement.
Standard Oil Clearance
Item Specified Condition Intake Side 0.025 to 0.060 mm (0.000984 to 0.00236 in.) Exhaust Side 0.030 to 0.065 mm (0.00118 to 0.00256 in.) Maximum Oil Clearance
Item Specified Condition Intake Side 0.08 mm (0.00315 in.) Exhaust Side 0.10 mm (0.00394 in.) If the oil clearance is greater than the maximum, replace the intake or exhaust valve and valve guide bush.
- Using a caliper gauge, measure the inside diameter of the valve guide bush.
- INSPECT CAMSHAFT THRUST CLEARANCE
- Install the camshaft.
Refer to INSTALLATION [11/2021 - ]

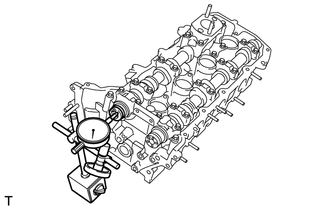

- Using a dial indicator, measure the thrust clearance while moving the camshaft back and forth.
Standard Thrust Clearance
0.110 to 0.165 mm (0.00433 to 0.00650 in.)
Maximum Thrust Clearance
0.175 mm (0.00689 in.)
If the camshaft thrust clearance is greater than the maximum, replace the cylinder head.
If the camshaft thrust surface is damaged, replace the camshaft, No. 2 camshaft, No. 3 camshaft sub-assembly or No. 4 camshaft sub-assembly.
- Install the camshaft.
