Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CYLINDER HEAD SET BOLT

    See step  7

  2. INSTALL CYLINDER HEAD GASKET
    1. Place a new cylinder head gasket on the cylinder block sub-assembly with the Lot No. stamp facing upward.
      NOTE:

      Be sure to place the gasket in the correct orientation.

      GTY512856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lot No.
      Front of Engine
  3. INSTALL CYLINDER HEAD SUB-ASSEMBLY
    1. Place the cylinder head sub-assembly on the cylinder block sub-assembly.
      NOTE:
      • Clean all contact surfaces.
      • Inspect and clean each cylinder head set bolt and bolt hole.
      • Gently place the cylinder head sub-assembly in order not to damage the cylinder head gasket with the bottom of the cylinder head sub-assembly.
    2. Apply a light coat of engine oil to the threads and under the heads of the 10 cylinder head set bolts.

      HINT:

      The 10 cylinder head set bolts are tightened in 3 progressive steps.

    3. Step 1:
      1. Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head set bolts with the 10 plate washers in several steps in the order shown in the illustration.

        Torque: 36 N.m (367 kgf/cm, 27 ft.lbf)

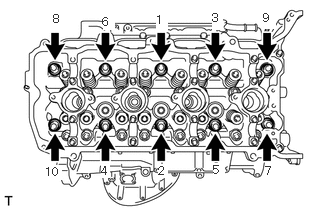

        Fig 1: Cylinder Head Set Bolts Tightening Sequence (1 Of 2)
        GTY513844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Step 2:
      1. Mark each cylinder head set bolt head with paint as shown in the illustration.
        GTY502903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Paint Mark
        Front of Engine
      2. Tighten the cylinder head set bolts another 90° in the order shown in step 1.
    5. Step 3:
      1. Tighten the cylinder head set bolts by an additional 90° in the order shown in step 1.
      2. Check that the paint marks are now facing rearward.
    6. Install the 2 bolts in the order shown in the illustration.

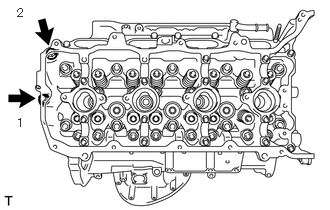

      Fig 2: Cylinder Head Set Bolts Tightening Sequence (2 Of 2)
      GTY497537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    7. Place the camshaft housing RH on the cylinder head sub-assembly.
    8. Temporarily tighten the 3 bolts in the order shown in the illustration.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

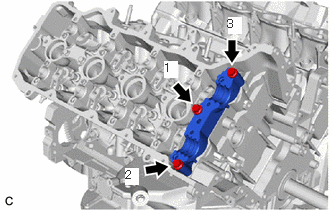

      Fig 3: Camshaft Housing RH Tightening Sequence
      GTY505775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Fully tighten the 3 bolts in the order shown in the illustration.

      Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  4. INSTALL NO. 2 CYLINDER HEAD GASKET
    1. Place a new No. 2 cylinder head gasket on the cylinder block sub-assembly with the Lot No. stamp facing upward.
      GTY519836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lot No.
      Front of Engine
      NOTE:

      Be sure to place the gasket in the correct orientation.

  5. INSTALL CYLINDER HEAD LH
    1. Place the cylinder head LH on the cylinder block sub-assembly.
      NOTE:
      • Clean all contact surfaces.
      • Inspect and clean each cylinder head set bolt and bolt hole.
      • Gently place the cylinder head LH in order not to damage the No. 2 cylinder head gasket with the bottom of the cylinder head LH.
    2. Apply a light coat of engine oil to the threads and under the heads of the 10 cylinder head set bolts.

      HINT:

      The 10 cylinder head set bolts are tightened in 3 progressive steps.

    3. Step 1:

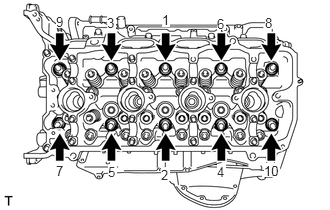

      Fig 4: Cylinder Head Set Bolts Tightening Sequence (1 Of 2)
      GTY503472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head set bolts with the 10 plate washers in several steps in the order shown in the illustration.

        Torque: 36 N.m (367 kgf/cm, 27 ft.lbf)

    4. Step 2:
      1. Mark each cylinder head set bolt head with paint as shown in the illustration.
        GTY502903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Paint Mark
        Front of Engine
      2. Tighten the cylinder head set bolts another 90° in the order shown in step 1.
    5. Step 3:
      1. Tighten the cylinder head set bolts by an additional 90° in the order shown in step 1.
      2. Check that the paint marks are now facing rearward.
    6. Install the 2 bolts in the order shown in the illustration.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

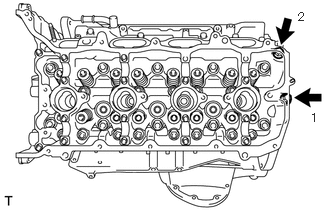

      Fig 5: Cylinder Head Set Bolts Tightening Sequence (2 Of 2)
      GTY508108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Place the camshaft housing LH on the cylinder head LH.
    8. Temporarily tighten the 3 bolts in the order shown in the illustration.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

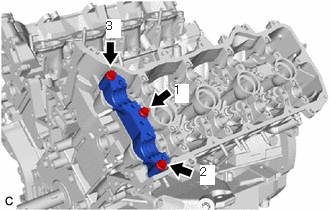

      Fig 6: Camshaft Housing LH Tightening Sequence
      GTY502118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Fully tighten the 3 bolts in the order shown in the illustration.

      Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  6. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

    See step  20

  7. INSTALL CAMSHAFT

    Refer to INSTALLATION [11/2021 - ]

  8. INSTALL NO. 2 CAMSHAFT

    Refer to INSTALLATION [11/2021 - ]

  9. INSTALL NO. 3 CAMSHAFT SUB-ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  10. INSTALL NO. 4 CAMSHAFT SUB-ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  11. INSTALL DIRECT FUEL INJECTOR ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  12. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to INSTALLATION [11/2021 - ]

  13. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to INSTALLATION [11/2021 - ]
