Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

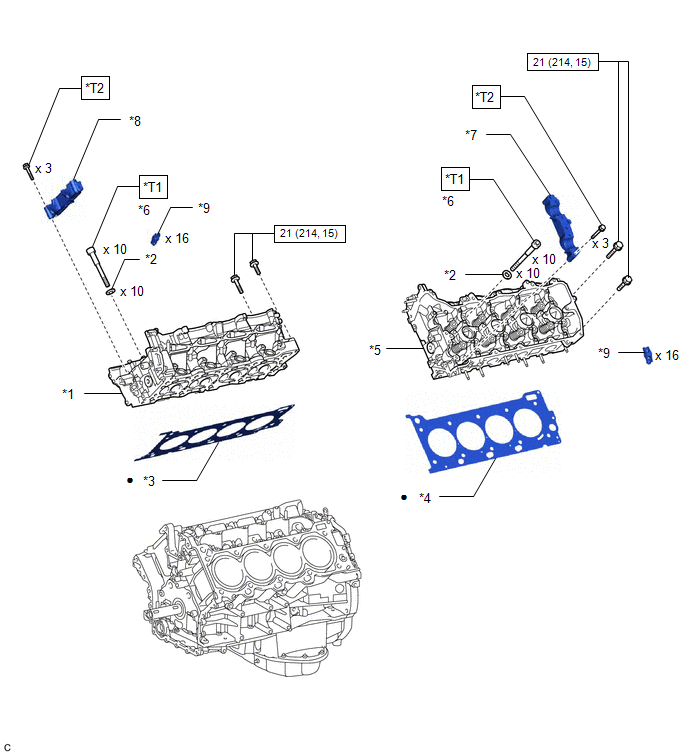

| *1 | CYLINDER HEAD SUB-ASSEMBLY | *2 | PLATE WASHER |
| *3 | CYLINDER HEAD GASKET | *4 | NO. 2 CYLINDER HEAD GASKET |
| *5 | CYLINDER HEAD LH | *6 | CYLINDER HEAD SET BOLT |
| *7 | CAMSHAFT HOUSING LH | *8 | CAMSHAFT HOUSING RH |
| *9 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| *T1 | 1st: 36 (367, 27) 2nd: Turn 90° 3rd: Turn 90° |
*T2 | 1st: 10 (102, 7) 2nd: 24 (245, 18) |
