Replacement [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pins unless they are being replaced.

    1. Using a plastic hammer, tap in new straight pins to the cylinder block sub-assembly.

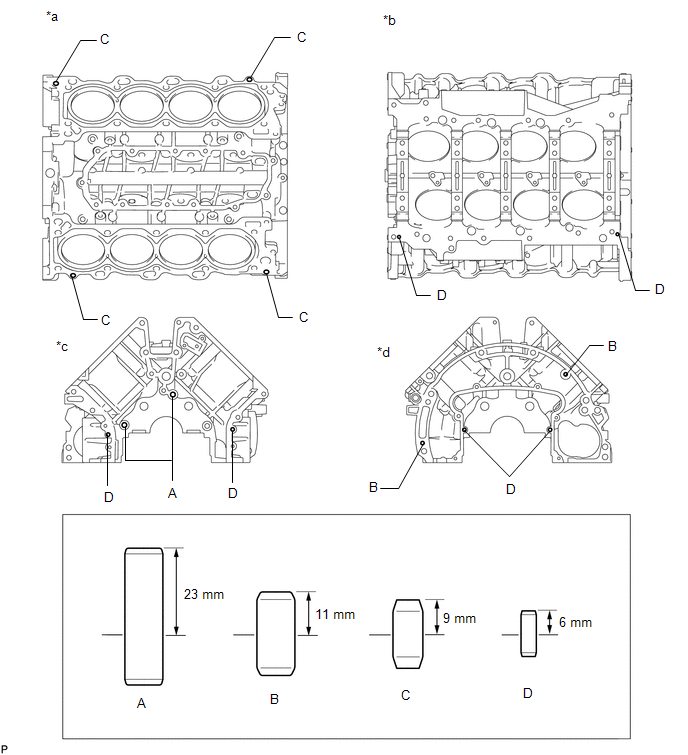

      GTY517995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper Side *b Lower Side
      *c Front Side *d Rear Side

      Standard Protrusion Height

      Item Specified Condition
      Straight Pin (A) 23 mm (0.906 in.)
      Straight Pin (B) 11 mm (0.433 in.)
      Straight Pin (C) 9 mm (0.354 in.)
      Straight Pin (D) 6 mm (0.236 in.)
  2. REPLACE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, install the stud bolts.

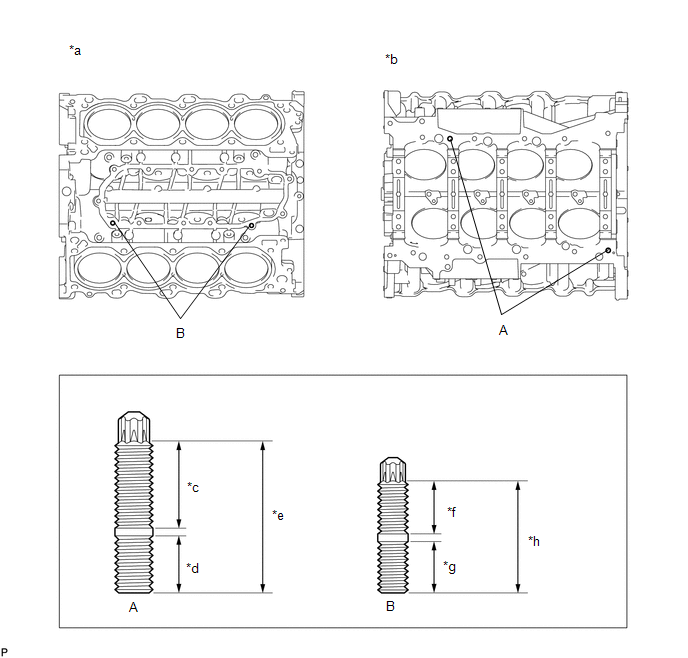

      GTY505252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper Side *b Lower Side
      *c 26.5 mm (1.04 in.) *d 18 mm (0.709 in.)
      *e 50 mm (1.97 in.) *f 14 mm (0.551 in.)
      *g 13 mm (0.512 in.) *h 29 mm (1.14 in.)

      Stud Bolt (A)

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      Stud Bolt (B)

      Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)
