Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
Refer to REMOVAL [10/2016 - ]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Using SST, hold the crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

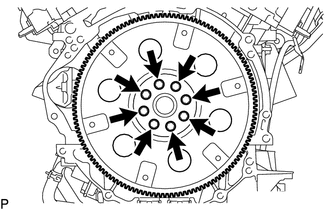

Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly and crank angle sensor plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ENGINE OIL SEAL

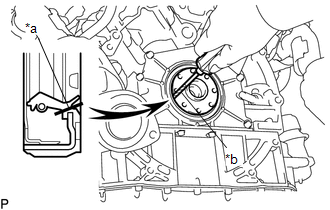

Using a knife, cut through the oil seal lip.

*a	Cut Position
*b	Protective Tape

Using a screwdriver with its tip taped, pry out the oil seal.
NOTE:
After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.

HINT:

Tape the screwdriver tip before use.
