Installation [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TIMING CHAIN CASE OIL SEAL

Apply MP grease to the lip of a new timing chain case oil seal.
NOTE:
Keep the lip free of foreign matter.

Using SST and a hammer, tap in the oil seal until its surface is flush with the timing chain case edge.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	0 to 1.0 mm

SST: 09223-22010
SST: 09506-35010

Standard depth

0 to 1.0 mm (0 to 0.0394 in.)

NOTE:

Keep the lip free of foreign matter.
Do not tap the oil seal at an angle.

INSTALL CRANKSHAFT TIMING GEAR KEY
1. Install the crankshaft timing gear key to the key groove.

INSTALL CRANKSHAFT PULLEY

Align the crankshaft timing gear key with the key groove of the crankshaft pulley, and slide on the crankshaft pulley.

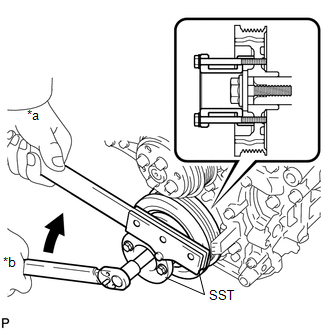

*a	Hold
*b	Turn

Using SST, install the crankshaft pulley bolt.
- SST: 09213-70011
  1. 09213-70020
- SST: 09330-00021
Torque: 260 N.m (2651 kgf/cm, 192 ft.lbf)

INSTALL OIL FILTER BRACKET SUB-ASSEMBLY
Refer to PROCEDURE - Step 15
INSTALL V-RIBBED BELT
See step 1
INSTALL FAN SHROUD
Refer to INSTALLATION [10/2017 - ]
ADD ENGINE OIL
Refer to PROCEDURE - Step 7 [10/2017 - 11/2021] , or refer to PROCEDURE - Step 7 [11/2021 - ]
INSPECT ENGINE OIL LEVEL
Refer to PROCEDURE - Step 1 [10/2017 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]
INSPECT FOR OIL LEAK
Refer to PROCEDURE - Step 8 [10/2017 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - ]
