Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

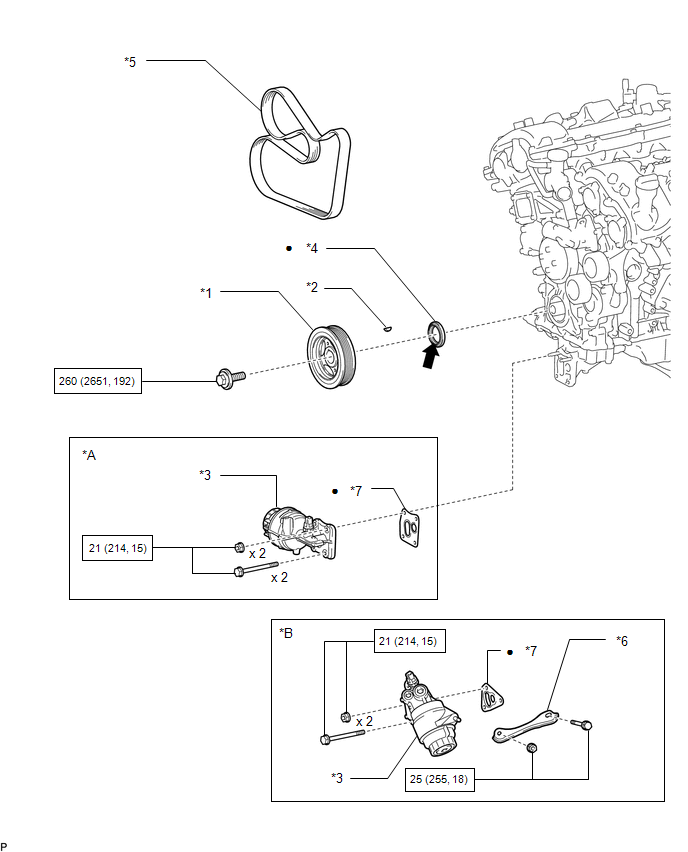

| *A | for 2WD | *B | for AWD |
| *1 | CRANKSHAFT PULLEY | *2 | CRANKSHAFT TIMING GEAR KEY |
| *3 | OIL FILTER BRACKET SUB-ASSEMBLY | *4 | TIMING CHAIN CASE OIL SEAL |
| *5 | V-RIBBED BELT | *6 | NO. 1 OIL FILTER BRACKET |
| *7 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
