Components [09/2020 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

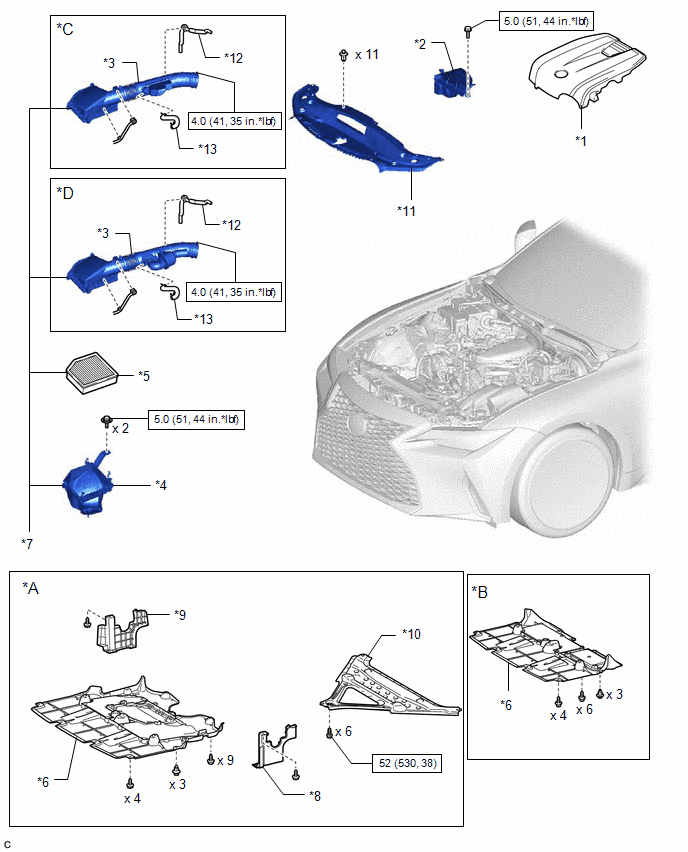

Fig 1: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (1 Of 9)
GTY965515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 2WD *B for AWD
*C w/o Intake Air Sound Creator *D w/ Intake Air Sound Creator
*1 V-BANK COVER SUB-ASSEMBLY *2 INLET NO. 1 AIR CLEANER
*3 AIR CLEANER CAP WITH AIR CLEANER HOSE *4 AIR CLEANER CASE SUB-ASSEMBLY
*5 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY *6 ENGINE UNDER COVER
*7 AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE *8 REAR ENGINE UNDER COVER LH
*9 REAR ENGINE UNDER COVER RH *10 FRONT SUSPENSION MEMBER BRACE
*11 COOL AIR INTAKE DUCT SEAL *12 NO. 1 FUEL VAPOR FEED HOSE
*13 NO. 2 VENTILATION HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque - -

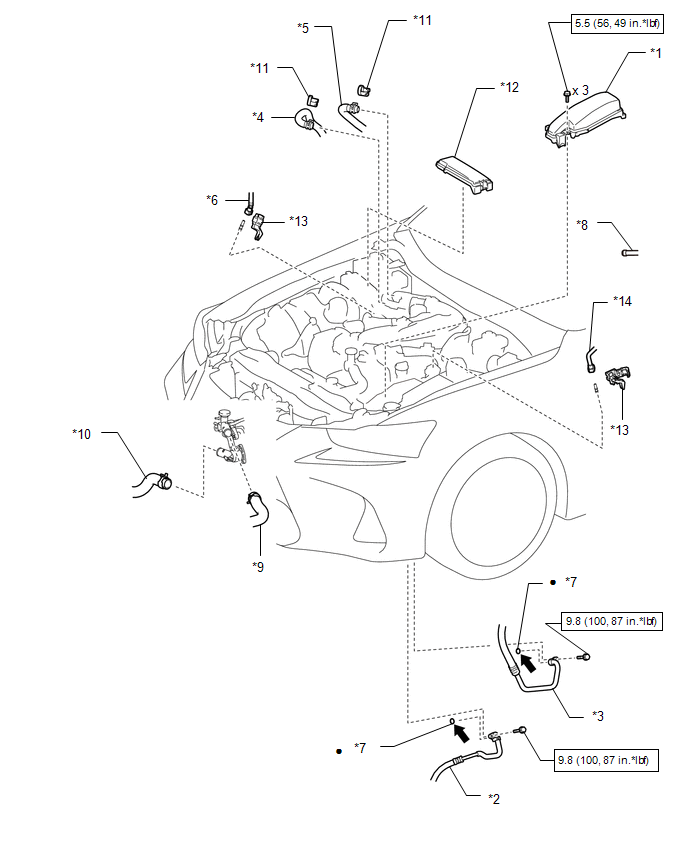

Fig 2: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (2 Of 9)
GTY802945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE ROOM ECU COVER *2 NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
*3 SUCTION HOSE *4 OUTLET HEATER WATER HOSE A
*5 INLET HEATER WATER HOSE A *6 FUEL TUBE SUB-ASSEMBLY
*7 O-RING *8 UNION TO CONNECTOR TUBE HOSE
*9 NO. 1 RADIATOR HOSE *10 NO. 2 RADIATOR HOSE SUB-ASSEMBLY
*11 WATER HOSE SET *12 NO. 1 ENGINE ROOM RELAY BLOCK COVER
*13 FUEL PIPE CLAMP *14 NO. 2 FUEL TUBE SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 12 or equivalent - -

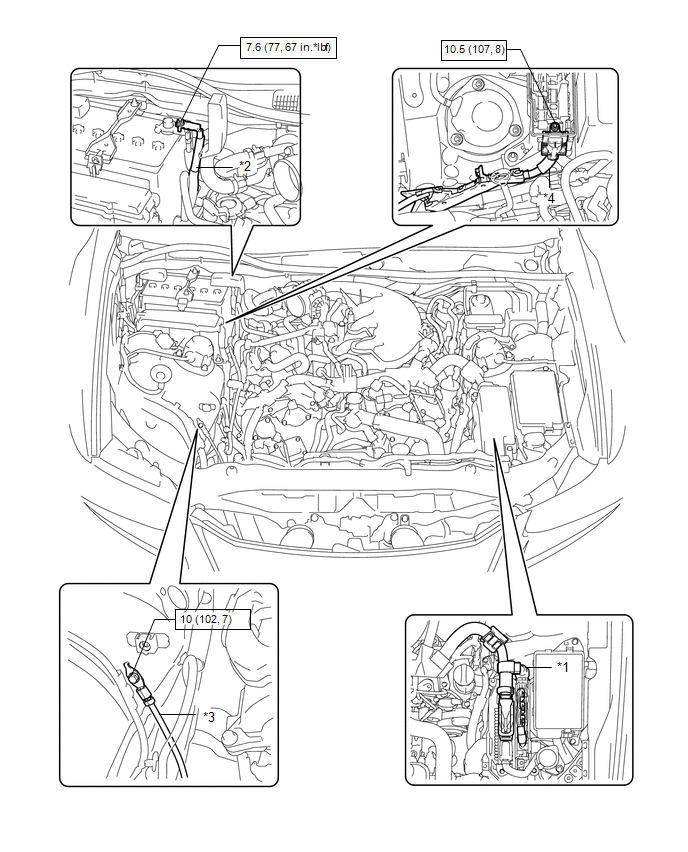

Fig 3: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (3 Of 9)
GTY972151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE WIRE *2 NO. 2 ENGINE WIRE
*3 NO. 3 ENGINE WIRE *4 NO. 4 ENGINE WIRE
N.m (kgf/cm, ft.lbf): Specified torque - -

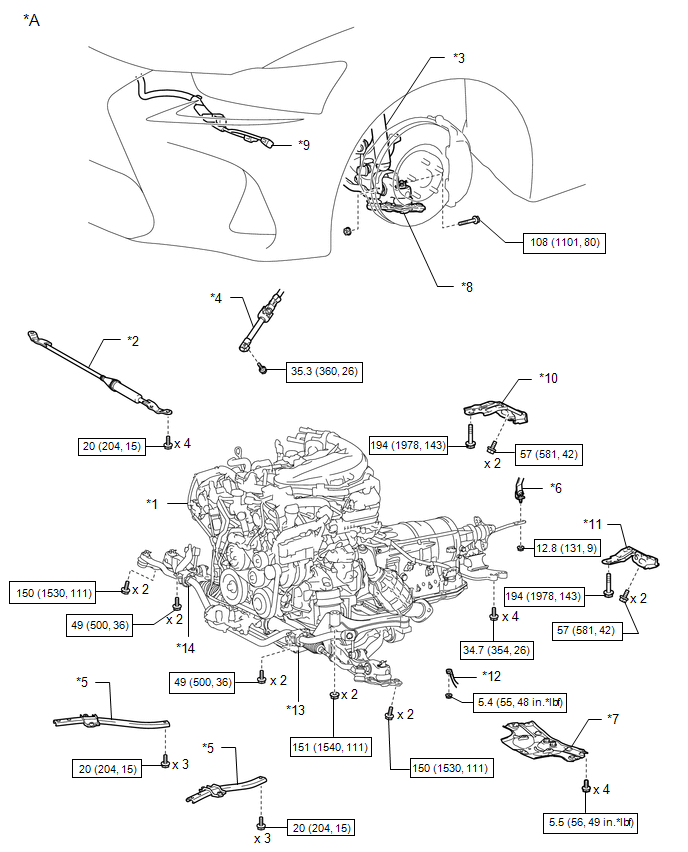

Fig 4: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (4 Of 9)
GTY972138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 2WD - -
*1 ENGINE ASSEMBLY WITH TRANSMISSION *2 SUSPENSION TOWER DAMPER
*3 FRONT SHOCK ABSORBER ASSEMBLY LH *4 STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
*5 FRONT UPPER NO. 2 SUSPENSION MEMBER *6 FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
*7 FRONT LOWER SUSPENSION MEMBER PROTECTOR *8 FRONT LOWER BALL JOINT ASSEMBLY LH
*9 WIRE HARNESS *10 STRUT BAR BRACKET REINFORCEMENT RH
*11 STRUT BAR BRACKET REINFORCEMENT LH *12 NO. 2 EARTH WIRE
*13 FRONT NO. 2 STABILIZER BRACKET LH *14 FRONT NO. 2 STABILIZER BRACKET RH
N.m (kgf/cm, ft.lbf): Specified torque - -

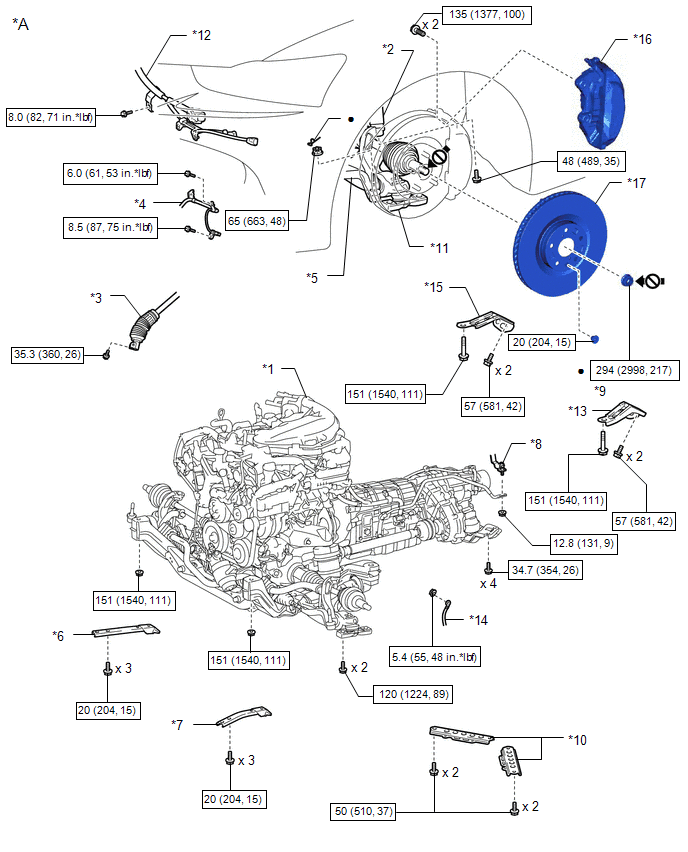

Fig 5: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (5 Of 9)
GTY965562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for AWD - -
*1 ENGINE ASSEMBLY WITH TRANSMISSION *2 FRONT SHOCK ABSORBER ASSEMBLY LH
*3 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY *4 FRONT SPEED SENSOR LH
*5 TIE ROD ASSEMBLY LH *6 NO. 1 FRAME CROSSMEMBER ASSEMBLY
*7 NO. 2 FRAME CROSSMEMBER ASSEMBLY *8 FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
*9 FRONT AXLE SHAFT NUT LH *10 FRONT SUSPENSION MEMBER BRACE
*11 FRONT LOWER BALL JOINT ASSEMBLY LH *12 WIRE HARNESS
*13 STRUT BAR BRACKET REINFORCEMENT LH *14 NO. 2 EARTH WIRE
*15 STRUT BAR BRACKET REINFORCEMENT RH *16 FRONT DISC BRAKE CALIPER ASSEMBLY
*17 FRONT DISC - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

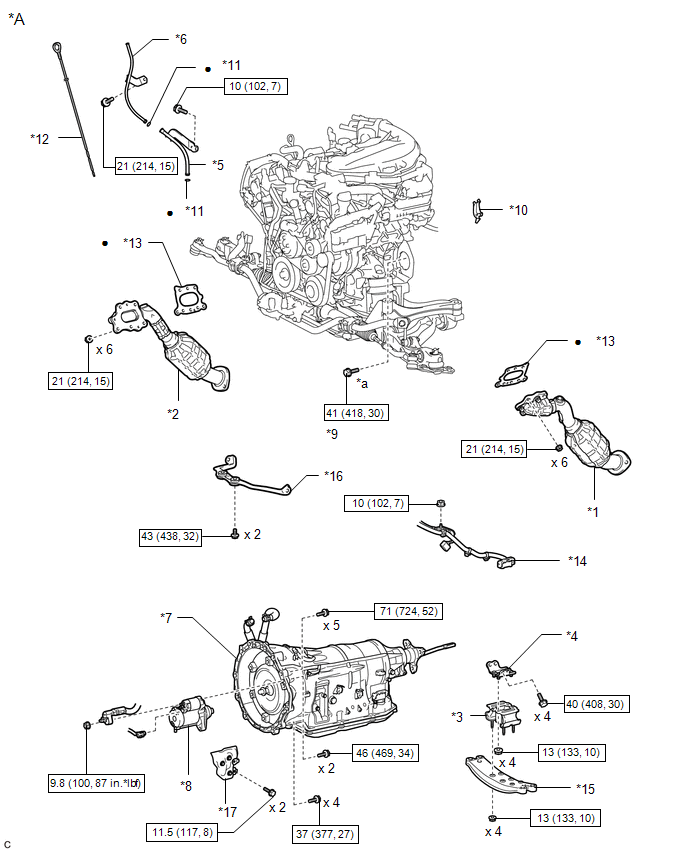

Fig 6: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (6 Of 9)
GTY833025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 2WD - -
*1 EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) *2 EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
*3 REAR ENGINE MOUNTING INSULATOR *4 REAR ENGINE MOUNTING BRACKET
*5 ENGINE OIL LEVEL DIPSTICK GUIDE *6 NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
*7 AUTOMATIC TRANSMISSION ASSEMBLY *8 STARTER ASSEMBLY
*9 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT *10 FLYWHEEL HOUSING SIDE COVER
*11 O-RING *12 ENGINE OIL LEVEL DIPSTICK
*13 GASKET *14 WIRE HARNESS
*15 REAR ENGINE MOUNTING MEMBER *16 NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
*17 STARTER COVER - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
*a Black: x 1
Silver: x 5		 - -

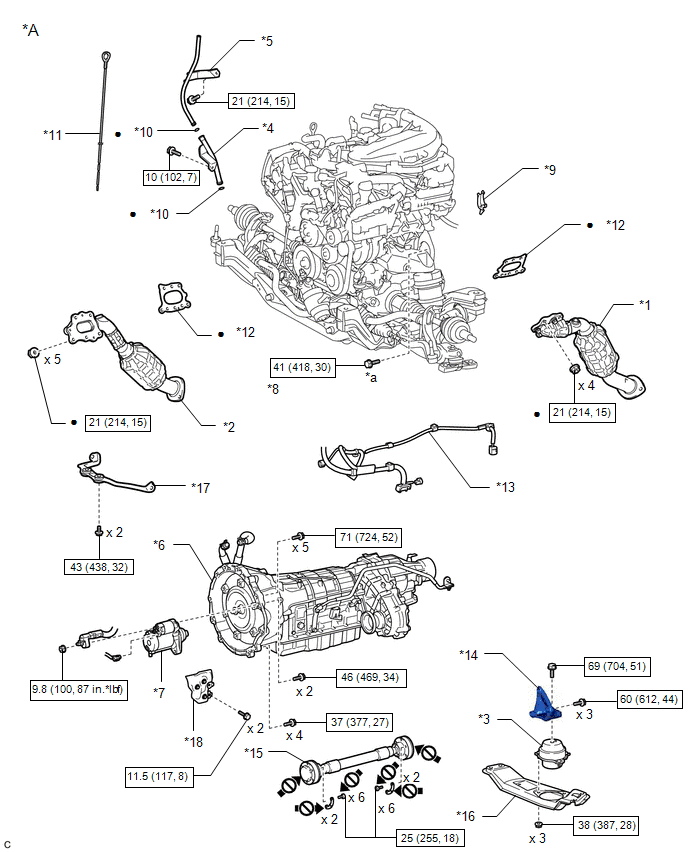

Fig 7: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (7 Of 9)
GTY965266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for AWD - -
*1 EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) *2 EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
*3 REAR NO. 1 ENGINE MOUNTING INSULATOR *4 ENGINE OIL LEVEL DIPSTICK GUIDE
*5 NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE *6 AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY
*7 STARTER ASSEMBLY *8 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*9 FLYWHEEL HOUSING SIDE COVER *10 O-RING
*11 ENGINE OIL LEVEL DIPSTICK *12 GASKET
*13 WIRE HARNESS *14 ENGINE MOUNTING BRACKET
*15 FRONT PROPELLER SHAFT ASSEMBLY *16 REAR ENGINE MOUNTING MEMBER
*17 NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY *18 STARTER COVER
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -
*a Black: x 1
Silver: x 5		 - -

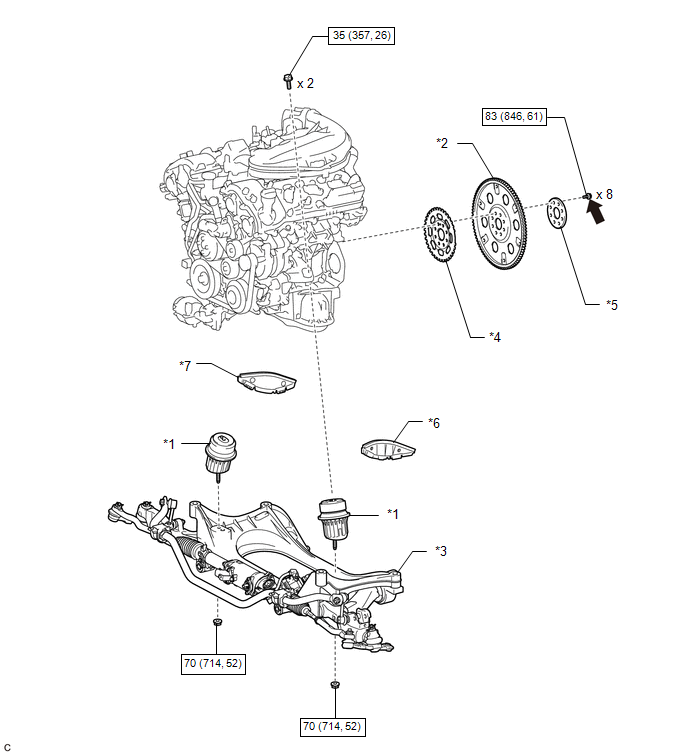

Fig 8: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (8 Of 9)
GTY791989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 2WD - -
*1 FRONT ENGINE MOUNTING INSULATOR *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY *4 CRANK ANGLE SENSOR PLATE
*5 REAR DRIVE PLATE SPACER *6 ENGINE UNDER COVER SUB-ASSEMBLY LH
*7 ENGINE UNDER COVER SUB-ASSEMBLY RH - -
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1324
* Precoated part - -

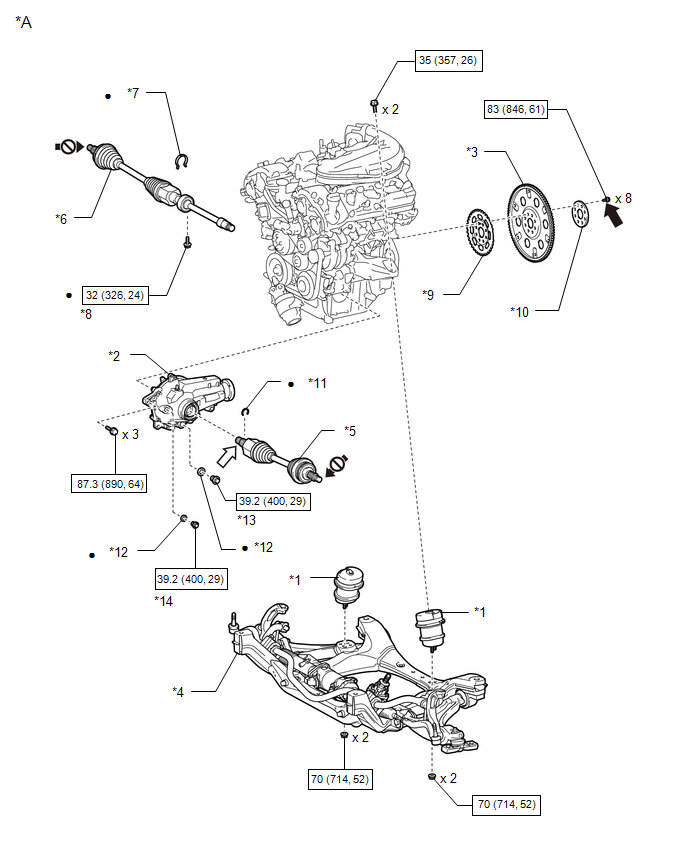

Fig 9: Engine Assembly Replacement Components With Torque Specifications [09/2020 - ] (9 Of 9)
GTY822385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for AWD - -
*1 FRONT ENGINE MOUNTING INSULATOR *2 FRONT DIFFERENTIAL CARRIER ASSEMBLY
*3 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY *4 FRONT FRAME ASSEMBLY
*5 FRONT DRIVE SHAFT ASSEMBLY LH *6 FRONT DRIVE SHAFT ASSEMBLY RH
*7 DRIVE SHAFT BEARING BRACKET HOLE SNAP RING *8 NO. 1 DRIVE SHAFT BEARING BRACKET SETTING BOLT
*9 CRANK ANGLE SENSOR PLATE *10 REAR DRIVE PLATE SPACER
*11 FRONT DRIVE SHAFT HOLE SNAP RING LH *12 GASKET
*13 FRONT DIFFERENTIAL DRAIN PLUG *14 FRONT DIFFERENTIAL FILLER PLUG
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 Hypoid gear oil SX
* Precoated part Do not apply lubricants to the threaded parts
