Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - ]

  2. REMOVE INLET NO. 1 AIR CLEANER

    See step  18 [10/2017 - 09/2020], or see step  18 [09/2020 - ]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  3 [10/2017 - 09/2020], or see step  3 [09/2020 - ]

  4. REMOVE V-RIBBED BELT

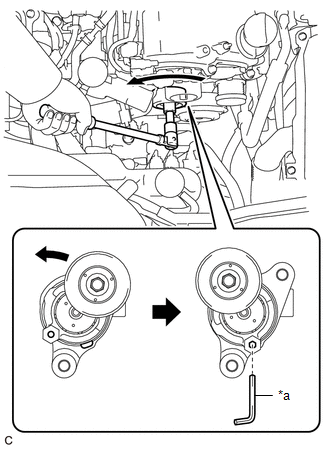

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      GTY835423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 mm Hexagon Wrench
    2. Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.
    3. Remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
